Insulated male Terminal
- Product Details

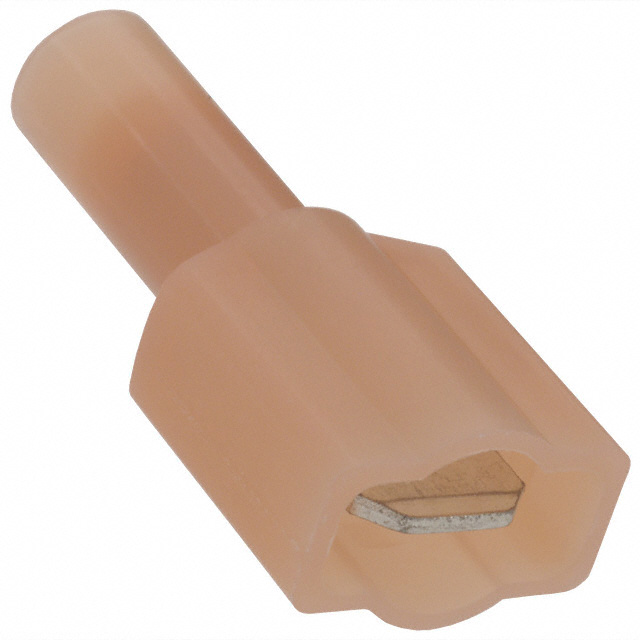

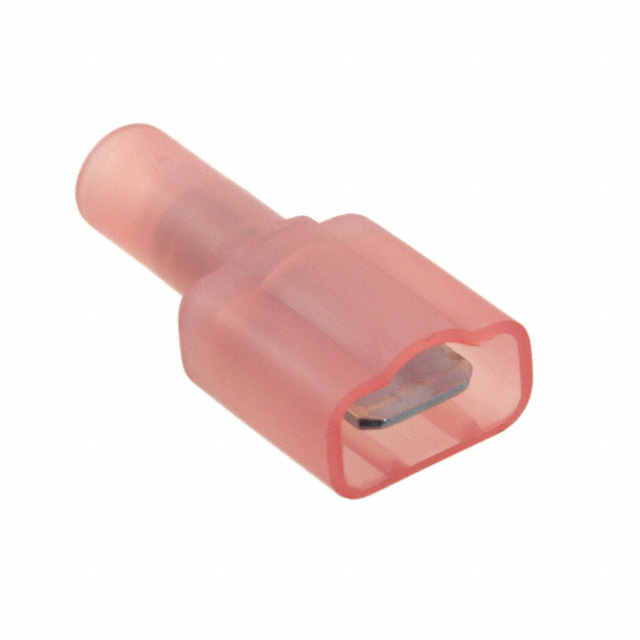

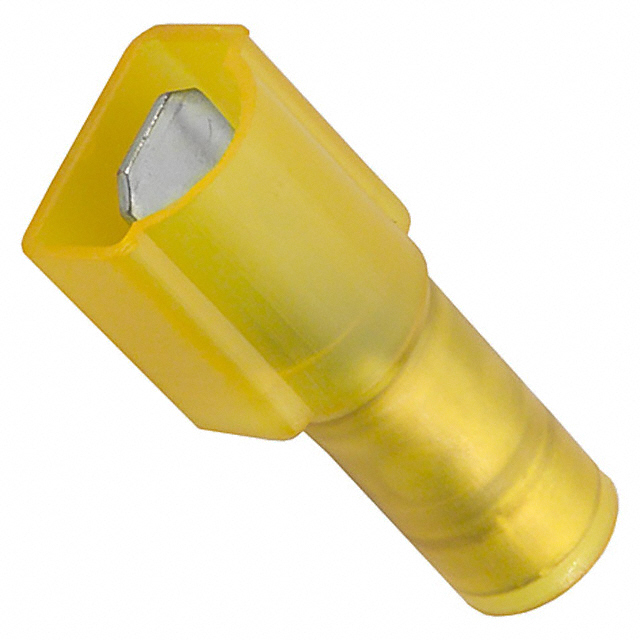

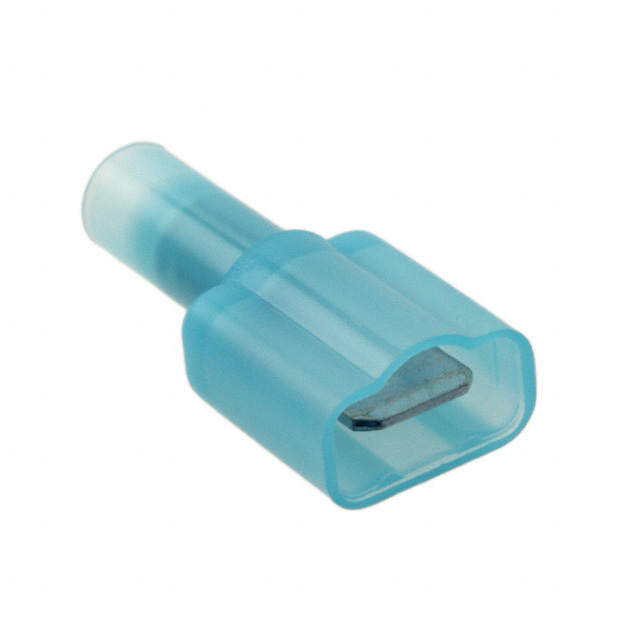

Insulated male Terminal
1.Maximum Electrical Rating: 300 VOLTS
2.Maximum Temperature: 105 C
3.Terminal Material: BRASS
4.Plating: ELECTRO TIN PLATED
5.Insulation Material: NYLON
| Unit：mm | ||||||
| Item No. | NEMA Size | Wire Size | Packing | |||
| W | T | AWG | mm2 | |||
| PN1.25-7B | 6.4 | 0.8 | 22-16 | 0.5-1.5 | 1000 pcs / Bag | |
| PN2-7B | 6.4 | 0.8 | 16-14 | 1.5-2.5 | ||
| PN5.5-7B | 6.4 | 0.8 | 12-10 | 4.0-6.0 | ||
