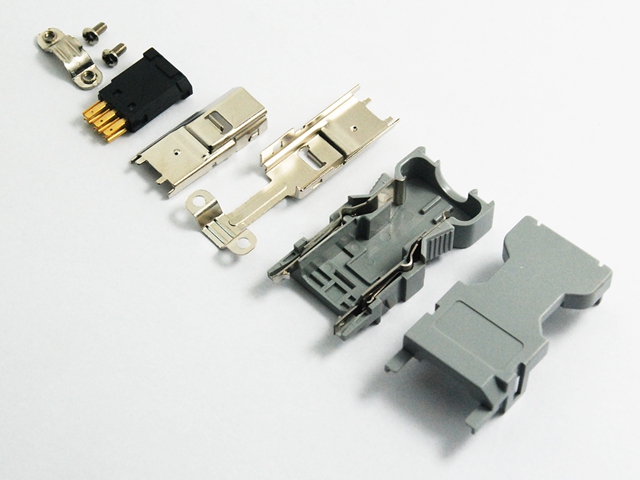

IEEE 1394 Servo Connector,6P Male
- Product Details
IEEE 1394 Servo Connector,6P Male
Materials:
1.Plastic:PBT+30%G.F,UL94-V0,Black.
2.Contact:Brass,Gold Flashed
3.Shell:Gold Rolled Steel,Nickel Plashed
4.Cover:PBT+30%G.F,Black.
5.Hood:ABS+30%G.F,Gray.
6.Wrench spring:Stainless steel
7.Screw:Stainless steel
Electrical:
Current Rating: 1 A
Voltage Rating: 150 VAC / 200 VDC
Insulation Resistance: > 5 × 108Ω at @ 500 VDC
With standing Voltage: 500 VRMS for 1 minute
Temperature Rating: -55°C to +85°C
