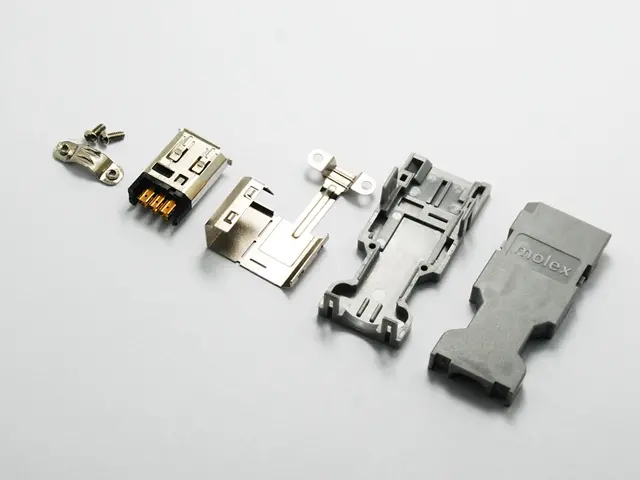

IEEE 1394 Servo Connector,6P Female

Material
Contact:Phosphor Bronze
Contact Plating:Au Over Ni
Insulator:Polyester ( Ul94v-0 )
Standard :PBT

Electrical:
Current Rating:1.0 A
Contact resistance:20mΩ MAX
With standing Voltage:500V AC/DC
Insulation resistance:1000MΩ Min
Temperature Rating: -55°C to +105°C

KLS1-1394-6PF.pdf
