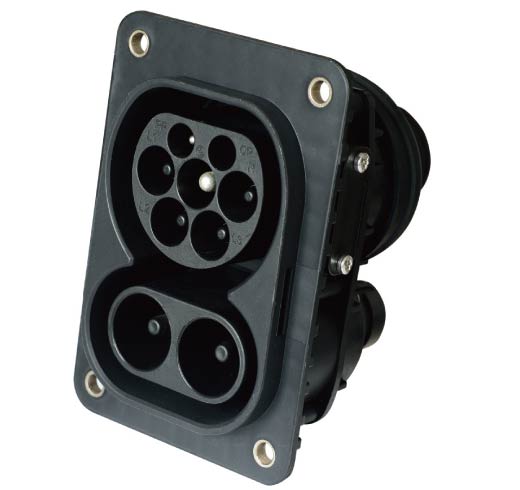

IEC standard AC pile end charging socket combo type

  • Model: KLS15-IEC08
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Features
1. Meet 62196-3 IEC 2011 SHEET 3-Im standard
2. Concise appearance, support back installation
3. Contact with drainage structure, improve safety performance
4. Safety pins insulated head design to prevent accidental direct contact with staff
5. Back Protection class IP55
6. DC Max charging power:127.5kW
7. AC Max charging power:41.5kW
Mechanical properties
1. Mechanical life : no-load plug in/pull out>10000 times
Electrical Performance
1. DC input: 80A/150A/200A  1000V DC
2. AC input: 16A 32A 63A 240/415V AC
3. Insulation resistance:>2000MΩ(DC1000V)
4. Terminal temperature rise:<50K
5. Withstand Voltage:3200V
6. Contact Resistance: 0.5mΩ Max
Applied Materials
1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Pin:Copper alloy,silver +thermoplastic on the top
Environmental performance
1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model Rated current Cable specigication
KLS15-IEC08-E80 80A 2 X 16mm²+1 X 25mm² +4 X 6mm²+6 X 0.75mm²
KLS15-IEC08-E150 150A 2 X 50mm²+1 X 25mm²  +4 X 16mm²+6 X 0.75mm²
KLS15-IEC08-E200 200A 2 X 70mm²+1 X 25mm²  +4 X 16mm²+6 X 0.75mm²
