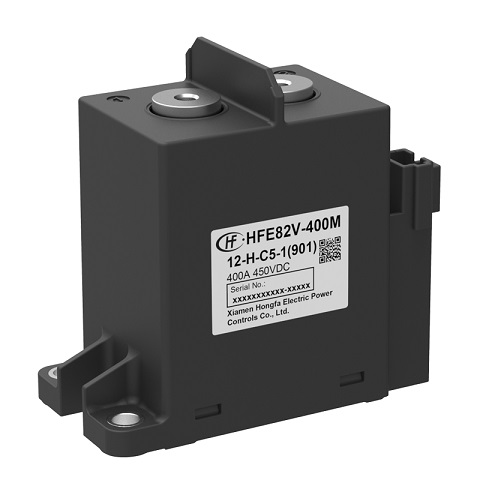

HONGFA High voltage DC relay,Carrying current 400A,Load voltage 450VDC 750VDC
- Product Details
Outline Dimensions:95.8 x 49.0 x 93mm
Features
● Ceramic brazing sealed technology guarantees no risk of arc
leaking and ensures no fire or explosion.
● Filled with gas ( mostly hydrogen) to effectively prevent the
oxidation burnt when exposed to electricity; the contact resistance
is low and stable, and the parts exposed to electricity can meet
IP67 protection level.
● Carrying current 400A continuously at 85°C.
● Insulation resistance is 1000MΩ(1000 VDC), and dielectric
strength between the coil and contacts is 3kV, which meets
the requirements of IEC 60664-1.
Detailed parameters
| Type | HFE82V-400M |
| Coil voltage form | DC |
| Coil voltage | 24, 12 |
| Contact Arrangement | 1 Form A |
| Contact version | Double contacts |
| Coil terminal structure | Connector |
| Mounting | Vertical Mounting |
| Load terminal structure | Screw |
| Coil power | Standard |
| Coil characteristic | Single coil |
| Contact capacity | Cu |
| Insulation standard | Class H |
| Contact plating | No coating |
| Polarity | Standard Polarity |
| Load voltage | 450VDC，750VDC |
| Shell structure | Standard |
| Coil power | Making:45W、Holding:5W |
| Dielectric strength (between coil & contacts) (VAC 1min) | 4000 |
| Operate time（ms） | ≤30 |
| Release time（ms） | ≤10 |
| Coil resistance（Ω） | Making3.2×（1±7%）Ω Holding28.8×（1±7%）Ω 24V:Making12.8×（1±7%）Ω Holding115.2×（1±7%）Ω |
| Creepage Distance（mm） | 26.14 |
| Electrical Distance（mm） | 17.3 |
| Insulation resistance（MΩ） | 1000 |
| Max. switching Current（DC） | 400 |
| Max. switching voltage（VDC） | 750 |
| Ambient temperature (max)（℃） | -40 |
| Ambient temperature (min)（℃） | 85 |
| Mechanical endurance min | 200000 |
| Electrial eddurance min | 1000 |
| Contact gap | 1.1 |
| Product Description | HTDC relay |
| Application | New energy vehicles |
| Typical application | New energy vehicles |
| Weight（g） | About 680 |
| Outline Dimensions | 95.8 x 49.0 x 93mm |
