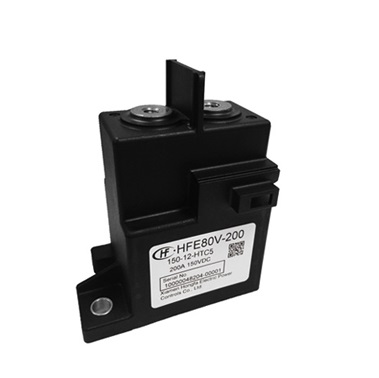

HONGFA High voltage DC relay,Carrying current 200A,Load voltage 150VDC 200VDC
- Product Details
Outline Dimensions:88.0 x 47.7 x 88.0mm;81.0 x 47.8 x 87.4mm
Features
● Carrying current 200A continuously at 85°C
● No specific polarity requirements for the connection
● Insulation resistance is 1000M?( at 500VDC), and dielectric strength between the coil and contacts is 4KV
Detailed parameters
| Type | HFE80V-200 |
| Coil voltage form | DC |
| Coil voltage | 12, 24 |
| Contact Arrangement | 1 Form A |
| Contact version | Single contact |
| Coil terminal structure | Connector |
| Mounting | Horizontal Installation, Vertical Installation |
| Load terminal structure | Screw |
| Coil power | Standard |
| Coil characteristic | Single coil |
| Contact capacity | AgSnO2 |
| Insulation standard | Class H |
| Contact plating | No coating |
| Polarity | Standard Polarity |
| Load voltage | 150VDC，200VDC |
| Shell structure | Standard |
| Base structure | Without plastic mounting boss |
| Coil power | 6 |
| Dielectric strength (between coil & contacts) (VAC 1min) | 4000VAC 1min |
| Operate time（ms） | ≤30 |
| Release time（ms） | ≤10 |
| Coil resistance（Ω） | 24×(1±7%) 96×(1±7%) |
| Creepage Distance（mm） | 14.7 |
| Electrical Distance（mm） | 7.8 |
| Insulation resistance（MΩ） | 1000 |
| Max. switching Current（DC） | 400 |
| Max. switching voltage（VDC） | 250 |
| Ambient temperature (max)（℃） | -40 |
| Ambient temperature (min)（℃） | 85 |
| Mechanical endurance min | 200000 |
| Electrial eddurance min | 500 |
| Contact gap | ≥1.6 |
| Product Description | HTDC relay |
| Application | New energy vehicles |
| Typical application | New energy vehicles |
| Weight（g） | About 370 |
| Outline Dimensions | 88.0 x 47.7 x 88.0mm;81.0 x 47.8 x 87.4mm |
