High Temperature Ceramic Plug connector

  • Model: KLS2-CTB15
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

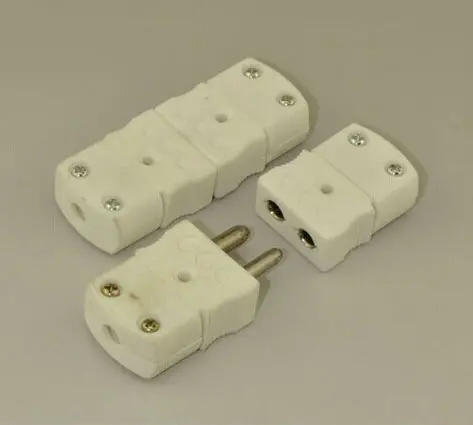

High Temperature Ceramic Plug Connector

High temperature plug, Ceramic Plug Connector, Porcelain Plug Socket is made of ceramic and cooper core, outside is made of metal aluminum protection shell or silicone rubber protection shell.

Apllication: Widely used in Rubber Machine, Food Machine, Chemical, Electric wire etc, and kinds of industry, high temperature power connection wire of kinds of plug style electric heating element, they can be used in high temperature and high voltage environment.

KLS2-CTB15C  Specification:

Material Alloy aluminum shell
Voltage 220V – 600V
Current Amp 3A – 35A
Cooper Hole 6mm
Plug heat resistance Under 500°C
lead wire heat

under 300°C working environment

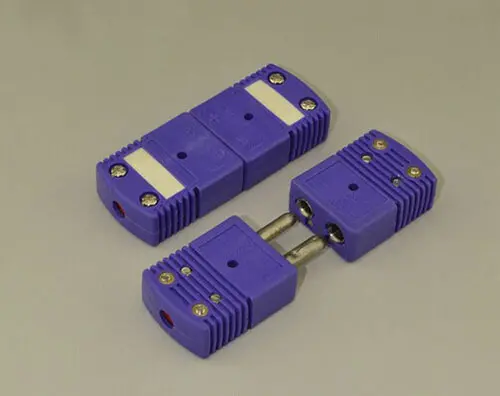

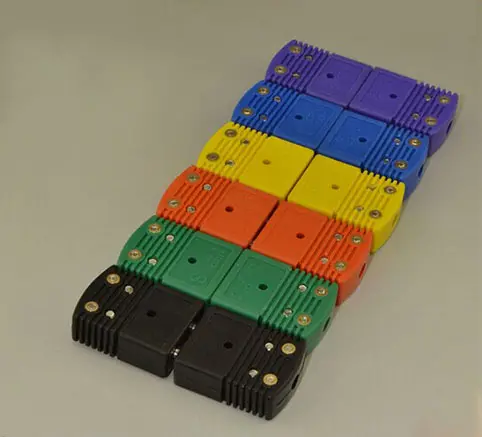

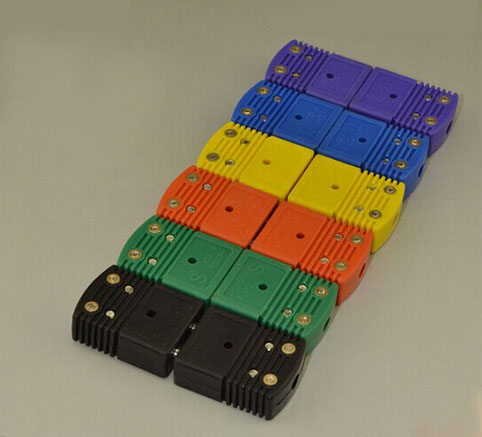

Specification

  • Material: Nylon
  • Max working temperature: 220centigrade
  • Screw Material: Nickel-plated iron
  • Nut material: copper
  • Conductor material: positive: Cu, negative: Costantan
  • Type:N type, all type available
  • Style: Omega
  • Application: connecting with thermocouple and instrument machine
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Omega type standard connector
  • Model Number: T type Omega standard connector
  • Product name: T type Omega standard connector
  • Product Size: 66*25*13mm or customized
  • length of pin: 16mm
