HDMI Connector Female

  • Model: KLS1-287
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

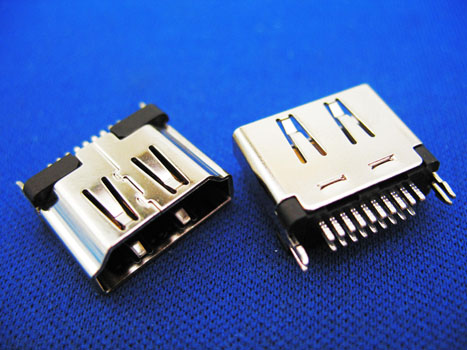

HDMI Connector With Female Dip 180 19P

How to order Example:

KLS1-287-1-N-30

Shell Material: 1-Brass 2-SPCC

Shell Plate: N=Nickel G=Gold
Terminal Plate: 1 = 1U ” / 3 = 3U” / 5 = 5U ” / 10 = 10U” / 15 = 15U ” / 30 = 30U”

Material:

Housing : LCP, UL 94V-0

Cover Terminal: Phosphor Bronze

Shell: Brass/SPCC

Electrical:
Current Rating : 0.5A

Dielectric Withstanding Voltage : 40V AC Per Minute

Insulation Resistance : 100MΩ MIN

Contact Resistance : 30MΩ MAX

Operating Temperature: -25ºC ~+85ºC
