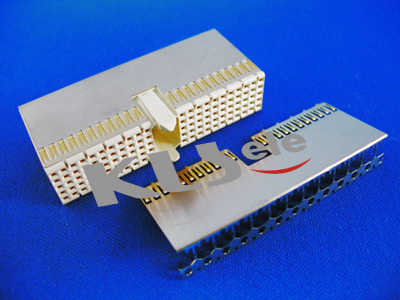

2.0mm Hard Metric Connector (Type A/C,Female,Dip 90)

Material:
Housing: LCP UL94V-0
Contacts:  Male-Brass / Female-Phosphor Bronze
Press-in force:100N/pin Max
Retention force:20N/pin Min
Electrical Characteristics:
Current Rating:1.5A at 20ºC,1.0A at 70ºC
Test Voltage:750 Vrms
Contact Resistance:20m(ohm) Max
Operating Temperature: -55ºC~+125ºC

KLS1-HBC2.pdf
