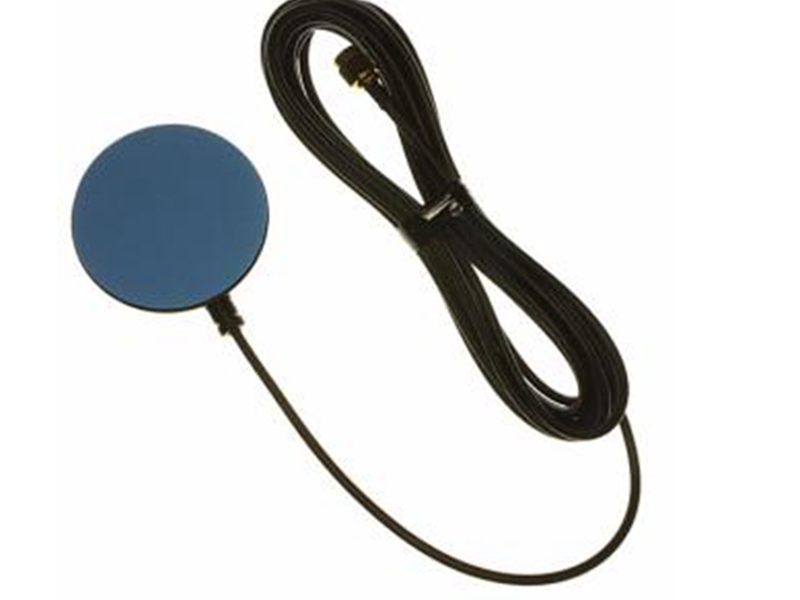

GPS+GLONASS Antenna

  • Model: KLS1-GN02
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order Information

KLS1-   GN     02 –  010   3000

GN:     GPS+GLONASS
Con. Code:   010: SMA-J  Connector
011:  RP SMA-J
020: SMB-J
030: MCX-J
040: MMCX-J
050: FAKRA-J

3000:  Cable Lenges

Specification:
Antenna
Center Frequency: 1602-1610MHz / 1575.42±3MHz
Band Width:CF±5MHz
Polarization:RHCP
Gain:5dBic
V.S.W.R:<1.5
Impendance:50Ω
Axial Ratio:3dB(max)

LAN
Gain:28±2dB
Noise Figure:<1.5
Filter Insertion Loss:<3dB
Ex-band Attenuation:35dB@CF±50MHz/50dB@CF±100MHz
Supply Voltage:2.2~5V DC
Current Consumption:10~20mA
V.S.W.R:<2.0
Cable:RG174
Connector:SMA/MCX/FAKRA or others
Radome Material:ABS
Mounting Method:Magnet
Operating Temperature :-40℃~+85℃
