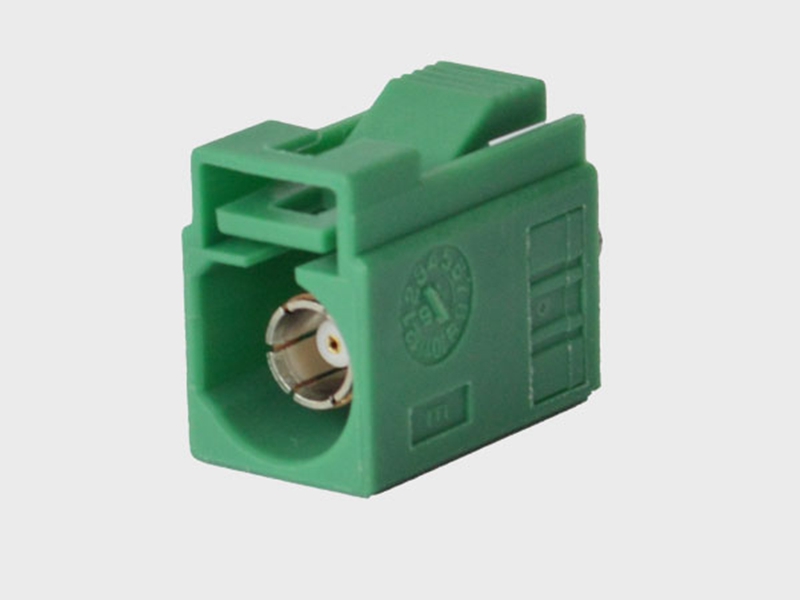

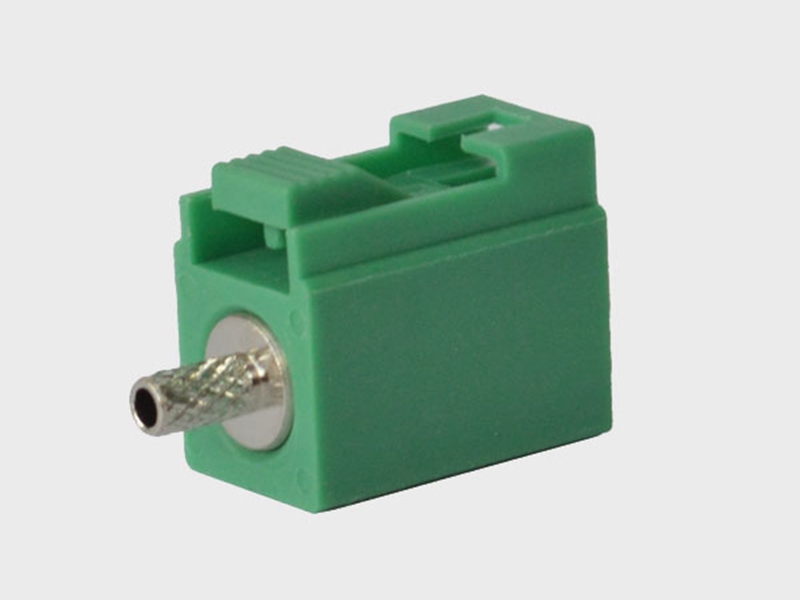

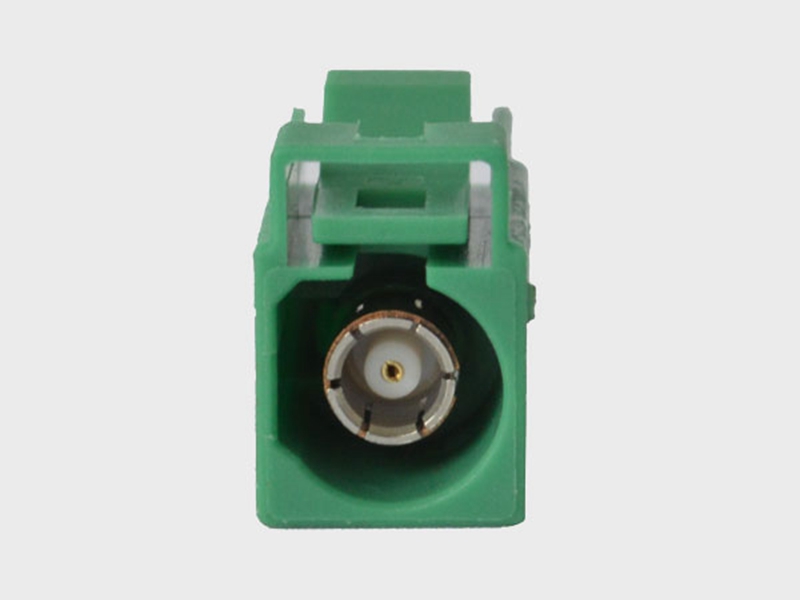

Fakra Female E type RG316/RG174

  • Model: KLS1-FAK001E
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Electrical  Specifications
Impedance: 50 Ω
Frequency Range: DC-4 GHz
Voltage Rating:335 volts
VSWR: 1.3 Max. Dielectric
Withstanding Voltage: 1000 volts rms
Insulation Resistance: 4000 MΩ Min.
Temperature Range: -40°C to +85°C
