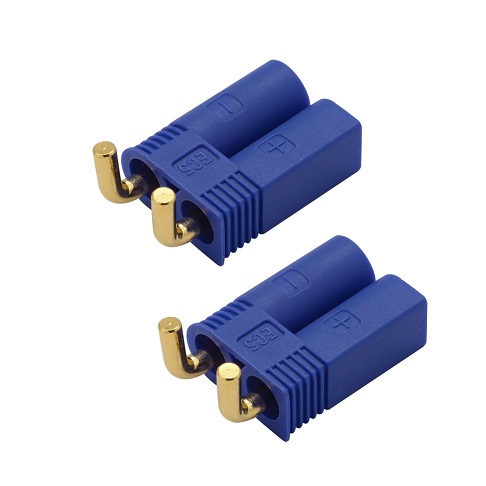

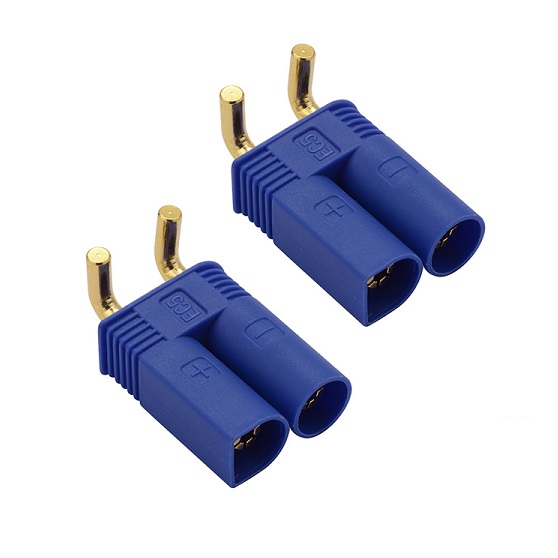

EC5 battery connector Female Right Angle
- Product Details
EC5 battery connector Female Right Angle
| Product model: Female:KLS1-XT03-EC5 |
Application:Lithium battery / controller / charger |
| Product color: Blue | Metal material: Brass Gold Plated |
| Instantaneous current: 90A | Recommended wire gauge: 10 # / 12 # / 14# |
| Rated current: 40A | Insulation material: PA66 |
| Contact resistance: 0.4m Ω | Operating temperature: – 20 ℃ to 120 ℃ |
| Withstand voltage: DC 500V | Plug times:1000 times |
| Flame retardant grade: UL94-V2 |
