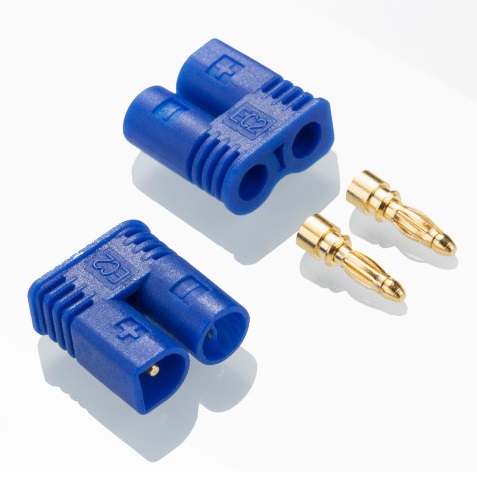

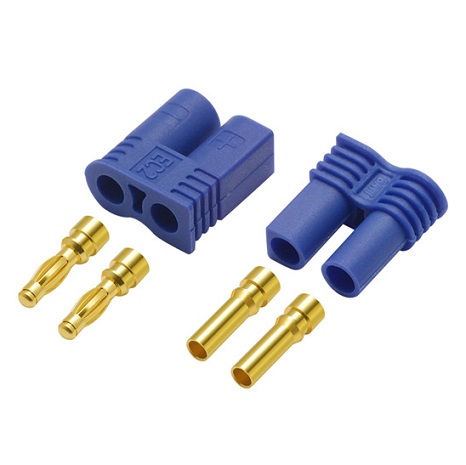

EC2 battery connector Male & Female
- Product Details
EC2 battery connector Male & Female
| Product model: Male housing: KLS1-XT02-EC2-MH-2 Female housing: KLS1-XT02-EC2-FH-2 Male terminal: KLS1-XT02-EC2-MT Female terminal: KLS1-XT02-EC2-FT |
Application:Lithium battery / controller / charger |
| Product color: Blue | Metal material: Brass Gold Plated |
| Instantaneous current: 30A | Recommended wire gauge: 16 # / 18 # / 20# |
| Rated current: 15A | Insulation material: PA66 |
| Contact resistance: 1.0m Ω | Operating temperature: – 20 ℃ to 120 ℃ |
| Withstand voltage: DC 500V | Plug times:1000 times |
| Flame retardant grade: UL94-V2 |
