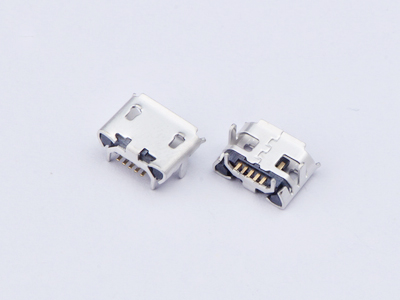

CONN RCPT 5POS MICRO USB SMD
- Product Details
Material:
Housing:High temperature thermoplastic
with G.F,UL94V-0
Contact:copper alloy,t=0.20mm
Shell:copper ally,t=0.25mm
Specification:
Current rating:1 AMax.
Dielectric withtanding volatage:
100V(ac)for 1min.
Contact resistance:50mΩ Max.
Total unmating force:1.0 kgf Min.
Temperature rating:-30°C~ +80°C
