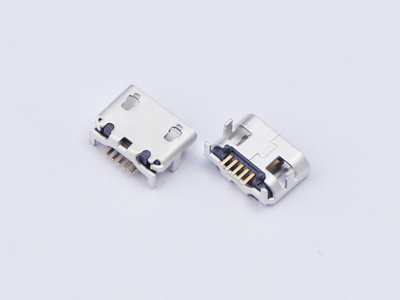

CONN RCPT 5POS MICRO USB DIP 7.2mm

  • Model: KLS1-4248
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material
Housing:Hing Temperature Thermoplastic
with G.F,UL94V-0,Black.
Contact:Copper Alloy,t=0.15mm.
Shell:Copper Alloy,t=0.30mm.
Electrical:
Current Rating:1A Max.
Dielectric Withstanding Voltage:
100 V AC for 1 min.
Contact Resistance:50mΩ Max.
Insulation Resistance:100MΩ Min.
Total Mating Force:3.57 kgf Max.
Total Unmating Force:1.0 kgf Min.
Temperature Range: -30°C Up To +80°C
