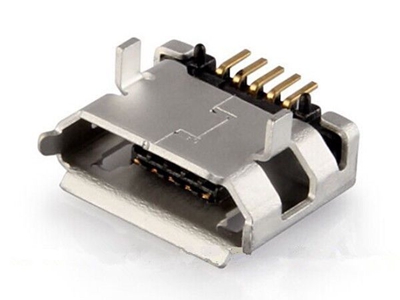

CONN RCPT 5POS MICRO USB DIP 5.9mm

  • Model: KLS1-4245
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material
Housing:Hing Temperature Thermoplastics,
              UL94V-0 LCP,Black.
Contact:Copper Alloy C2680.
Shell:Copper Alloy C2680.

Finish:
Contact:Plated Gold In Mating Area;
           Tin On Solder Talls.
Shell:Nickel Plating.

Electrical:
Current Rating:1.0A/Contact Terminal.
Voltage Rating:30V DC
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:
                     300 V AC AT Sea Level.
Insulation Resistance:100MΩ Min.
Connector Mate and Unmated Force
Mate Force:3.0kgf Max.
Unmated Force:0.7kgf Min.
Terminal Retenion:0.5kgf Min.
