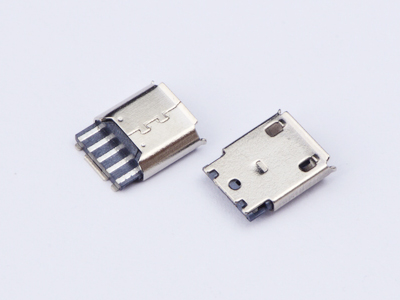

CONN MICRO USB 5P Solder type

  • Model: KLS1-4254
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Housing:Hight Temperature Plastic,
              UL94V-0,Black.
Contact A:Brass T=0.20mm,Au Plated.
Shell:Stainless Steel T=0.25mm,Ni Plated.

Electrical:
1.Current Current Rating:
                        1.0A(Signal PIN 2 3 4);
                        1.8A (Power PIN 1 5)
2.Contact Resistance:40mΩ Max.
3.Insulation Resistance:100MΩ Min.
4.Dielectric Withstanding:100V AC Min.
5.Durability:10000 cycles.
6.Connector Mating forces:35N Max (3.57Kgf).
7.Connector Unmating force:8N Min (0.30Kgf).
8.Product Meet The Request of the RoHS
