Circuit Board Track
- Product Details
Circuit Board Track
Material: UL approved Nylon 66, 94V-2.
Color: Natural, available in other colors.
To be fixed by 2 sets of 3mm flat-head screw.
BT-90A,BT-155A,BT-160A with snap in design.

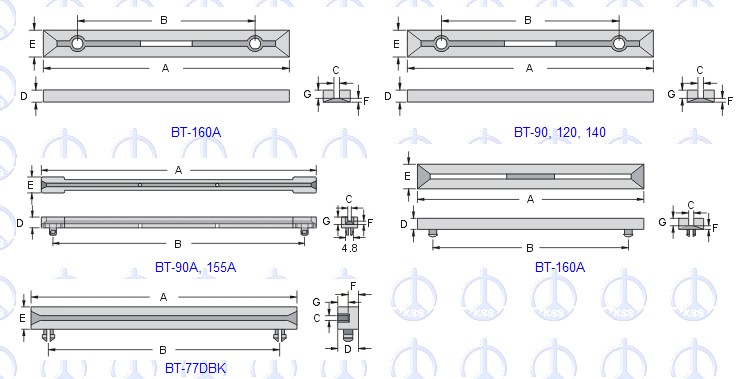

| Item No. | A | B | C | D | E | F | G | Packing | |
|---|---|---|---|---|---|---|---|---|---|
| BT-90A | 89.5 | 77.5 | 2.0 | 4.5 | 9.5 | 1.5 | 3.0 | 100 pcs / Bag | |
| BT-90 | 89.5 | 64.4 | 2.0 | 4.5 | 9.5 | 1.5 | 3.0 | ||
| BT-120 | 119.0 | 94.5 | 2.0 | 4.5 | 9.5 | 1.5 | 3.0 | ||
| BT-140 | 141.0 | 115.4 | 2.0 | 4.5 | 9.5 | 1.5 | 3.0 | ||
| BT-155A | 154.0 | 141.0 | 2.0 | 4.6 | 6.5 | 1.3 | 3.3 | ||
| BT-160 | 160.5 | 134.5 | 2.0 | 4.5 | 9.5 | 1.5 | 3.0 | ||
| BT-160A | 163.0 | 149.5 | 2.0 | 6.5 | 9.5 | 2.2 | 2.3 | ||
