Welcome to KLS

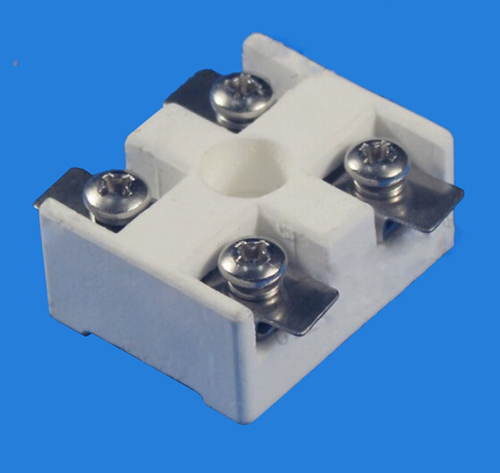

Ceramic terminal blocks

  • Model: KLS2-CTB3
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Ceramic terminal blocks

Electrical :
Rated voltage: 110V~750V
Rated current: 15A~50A
Wire range: 1.0~16.0 mm2
Material:
Pin header: Brass
Housing: Ceramic
Mechanical:
Temp. Range: -40ºC~+250ºC

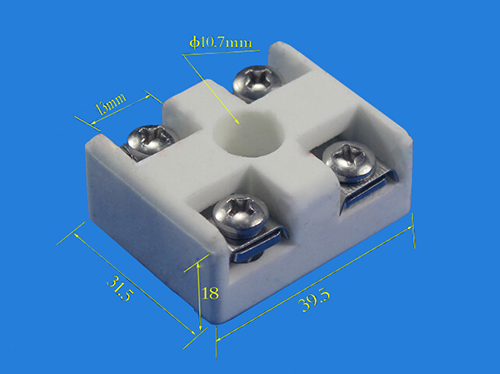

Model Texture of material Length Width Height Rated Current
KLS2-CTB3-02P-1 High frequency porcelain 39.5 31.5 18 35A
KLS2-CTB3-02P-2 High frequency porcelain 39.5 31.5 18 35A
