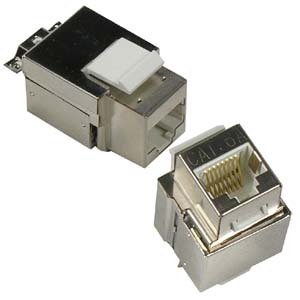

Cat.6A RJ-45 shielded keystone jack 10 Gigabit Ethernet applications 110IDC

  • Model: KLS12-DK7005
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Cat.6A RJ-45 shielded keystone jack is 8-position 8-conductor (8P8C) and designed for computer networking. It is engineered to provide full shield protection and reliability, supporting up to 10 Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6A performance standards. Use with BestLink Netware shielded Ethernet cable.

* CAT 6A 10G rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
* PCB technology provides maximum performance and superior signal quality
* Terminate with 110 punch down tool

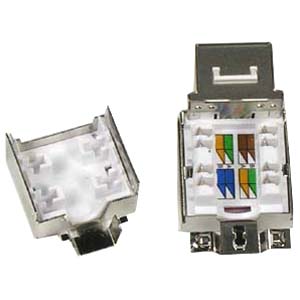

* 4 x 4 termination layout
* Includes an integrated TIA-568A/B color wiring diagram
* Backwards compatible to all lower rated category components
* Compatible with all BestLink Netware wallplates, surface mount boxes, and blank patch panels
* Works with all Bestlink Netware shielded Ethernet patch cables
* Termination cap included
* Individually packaged
* UL listed
