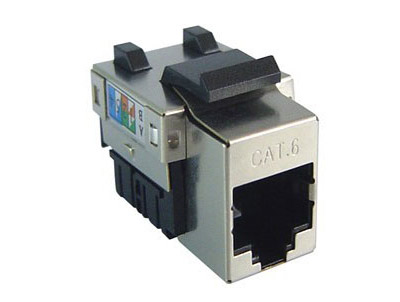

Cat.6A RJ-45 shielded keystone jack 10 Gigabit Ethernet applications 110IDC

  • Model: KLS12-DK7006
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Available in Cat6A, T568A/B wiring, meet or exceed TIA/EIA Cat6A
requirements
Shielding protects against EMI/RFI interference
Housing : high temperature thermoplastic
Compact jack design,8 positions and 8 conductors
Contact : phosphor bronze , phosphor bronze with 6 to 50μ”gold plate
Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
Easy to be terminated, low attenuation loss and high return loss
High reliability and superior performance
Available in different colors

Construction

Description Parameter
Contact resistance(max) 100mΩ
Insulation resistance(min) 500MΩ
Return loss(dB) 5.8dB
Next(dB) 4.7dB
Ps next(dB) 5.5dB

Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

KLS12-DK7004

Cat6A shielded keystone jacks (180 degree)

Silver

20PCS

200PCS

L 53.5cm×W 31.3cm×H 23.4cm

9.20KG
