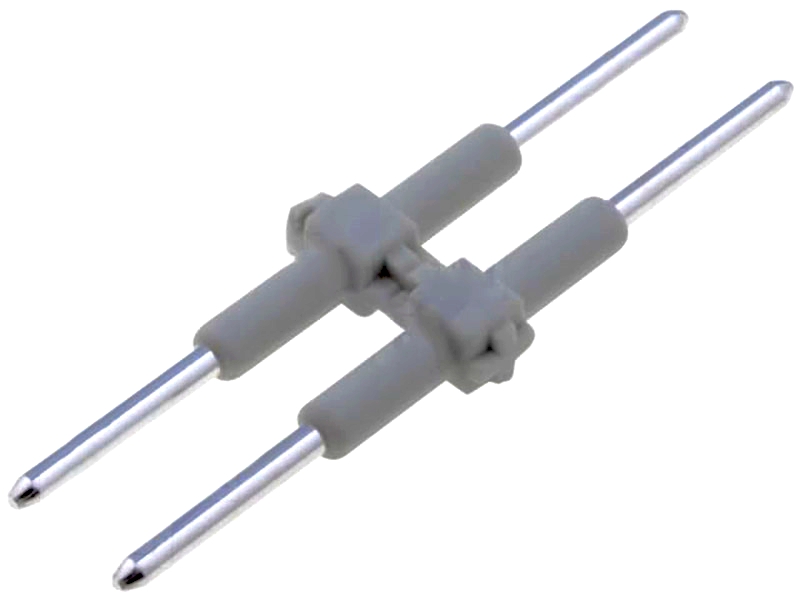

Board to Board Link, Pitch 4.0mm
- Product Details
MATERIAL
Insulator:PA46,UL94V-0,Beige
Contacts:Brass,Ni-plated
Main Specifications
Poles:01~03P
Contact Resistance:≤20mΩ
Insulation Resistance:≥800MΩ
Rated Voltage:250V AC DC
Rated Current:6.0A AC DC
Withstanding Voltage:800V AC/minute
Temperature Range: -25 ° C ~ + 85° C
