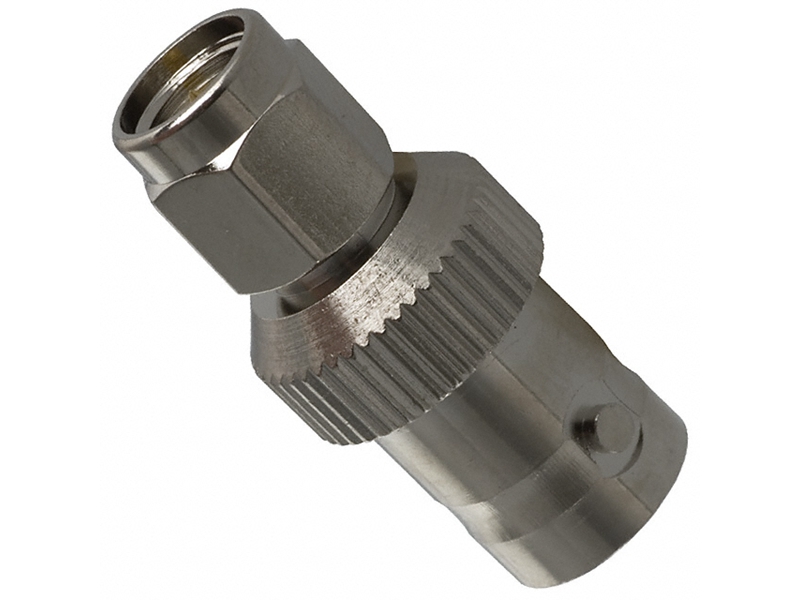

BNC Female To SMA Male,50Ω
- Product Details
| Adapter Type | Plug to Jack |
|---|---|
| Adapter Series | BNC to SMA |
| Center Gender | Female to Male |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | BNC Jack, Female Socket |
| Conversion Type | Between Series |
| Impedance | 50 Ohm |
| Style | Straight |
| Mounting Type | Free Hanging (In-Line) |
| Frequency – Max | 4GHz |
| Ingress Protection | – |
| Features | – |
| Body Material | Brass |
| Body Finish | Nickel |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
