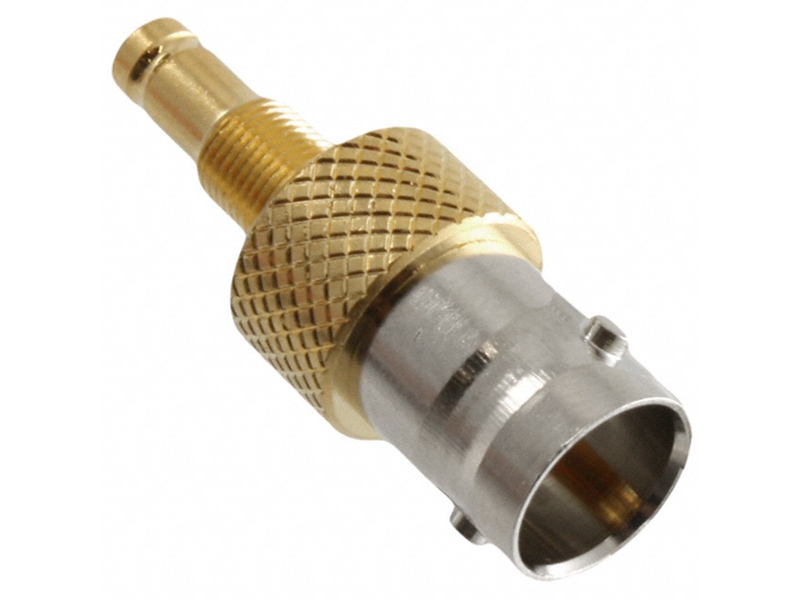

BNC female to 1.0/2.3 Jack,75Ω

  • Model: KLS1-BNC022B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Adapter Type: Jack to Jack
Adapter Series: BNC to 1.0/2.3
Center Gender: Female to Female
Convert From (Adapter End): BNC Jack, Female Socket
Convert To (Adapter End): 1.0/2.3 Jack, Female Socket
Conversion Type :Between Series
Impedance: 75 Ohm
Style: Straight
Mounting Type Free Hanging (In-Line)
Frequency : Max 2GHz
Ingress Protection –
Features –
Body Material: Brass
Body Finish: Gold
Dielectric Material: Polytetrafluoroethylene (PTFE)
Center Contact Material: Beryllium Copper
Center Contact: Plating Gold
