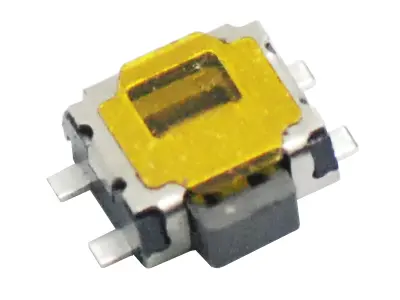

  • Model: KLS7-TS5401
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical:
1.Rating:50mA 12V DC
2.Contact Resistance:100mΩ Max.
3.Insulation Resistance:100MΩ Min,100V DC
4.Dielectric voltage proof:250V AC for 1min
5.Electrically Life:100000 cycles Min.
6.Operating Force:250±50gf
7.Environment temperature:-30ºC~+70ºC

Materials:
A.Cards: Copper
B.Pedestal:LCP
C.Shrapnel:Silver coated stainless steel
D.Dust Film:0.05
E.Push button:PPA,Grey
F.Cover:Stainless steel
G.Dust Film:0.05
