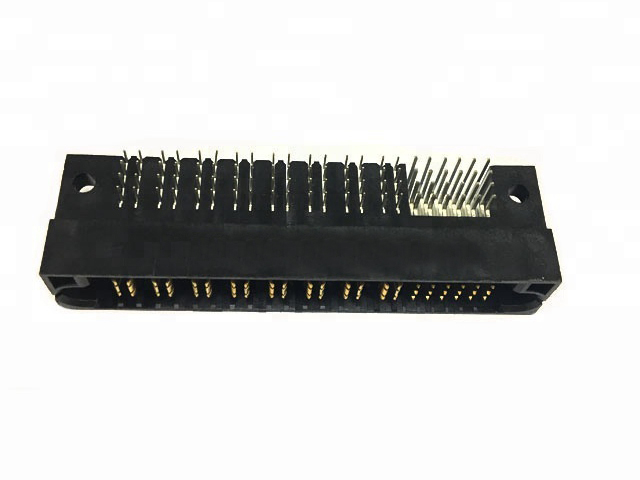

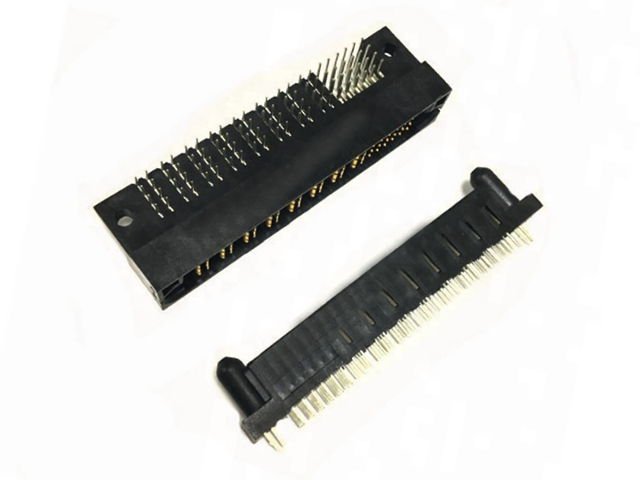

8 POWER+24 signal MULTI-BEAM Power Connector

  • Model: KLS1-MDS03
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Order Information:
L-KLS1-MDS03 X – 24 08 – R A 05
X: F-Female Contact M-Male Contact
24: Signal Contact Number
08: Power Contact Number
R: Right angle Type S: Straight Type
A: Power Terminal Pitch A:Pitch 6.35mm B:Pitch 7.62mm C:Pitch 5.08mm
XX: Contact Area Plating: 03: Au3u” 05: Au5u” 10: Au10u” 15: Au15u” 30: Au30u”

Material:
Housing: PPA+30% G. F  UL94V-0, Black
Contact:
Power Contact: Copper alloy
Signal Contact: Copper alloy
PCB Lock: Copper alloy, Tin Plating
Contact Plating: Gold Plated on Contact Area,Tin Plated on Solder Tail,Nickel Plated All Over.

Electrical Characteristics:
Current Rating:
Signal Contacts:  2.5 Amps  (<25pcs);
1.5 Amps   (25~48pcs);
1.0 Amps   (>48pcs);
Power Contacts:  45 Amps
Rated Voltage:
Signal Terminal:   50VAC
Power Terminal:   250VAC(Pitch 5.08mm/6.35mm);
300VAC(Pitch 7.62mm);
Contact Resistance:
Signal Terminal:   20mΩ Max.
Power Terminal:     2mΩ Max.
Insulator Resistance:
Signal Terminal:   1000MΩ Min.
Power Terminal:   2000MΩ Min.
Withstand Voltage:
Signal Terminal:   1000VDC/1 minutes
Power Terminal:   1500VDC/1 minutes  (Pitch 5.08mm);
2500VDC/1 minutes  (Pitch 6.35mm/7.62mm);
Durability:            250 cycles Min.
Operating Temperature: -40ºC~+125ºC
