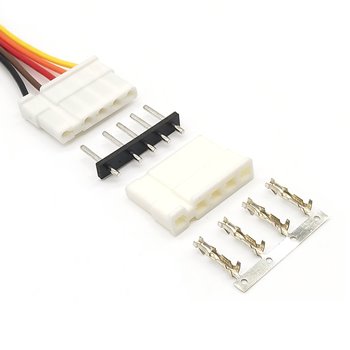

7.50mm Pitch Wire To Board Connector

Model: KLS1-XL1-7.50
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

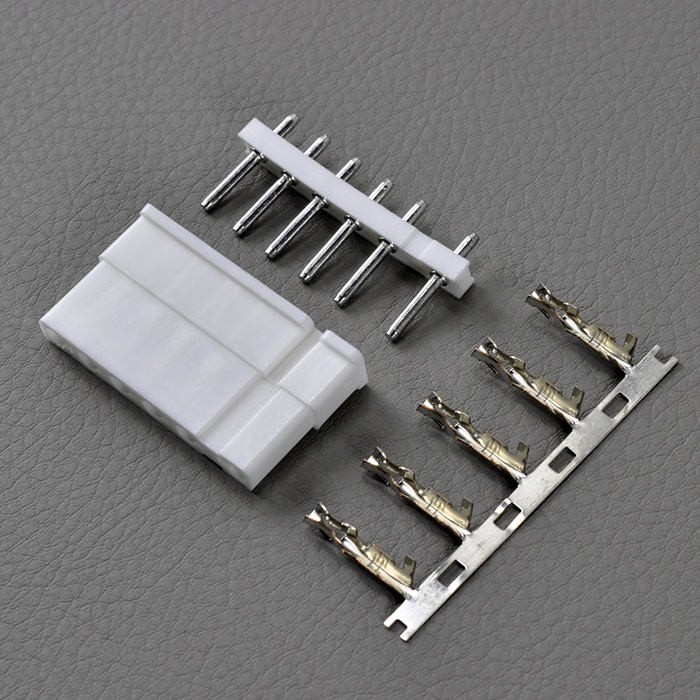

7.50mm Pitch Wire To Board Connector
Order information:
KLS1-XL1-7.50-02-H
Pitch:7.50mm
Pin numbur:2~6 pins
H-Housing T-Terminal S-Straight male pin

Specifications
◆Material: Nylon66 UL94V0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:7A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:1000MΩ/Min.
◆Withstanding voltage:1500V AC/minute
◆Contact resistance:10mΩ/Max.

PDF

KLS1-XL1-7.50.pdf
