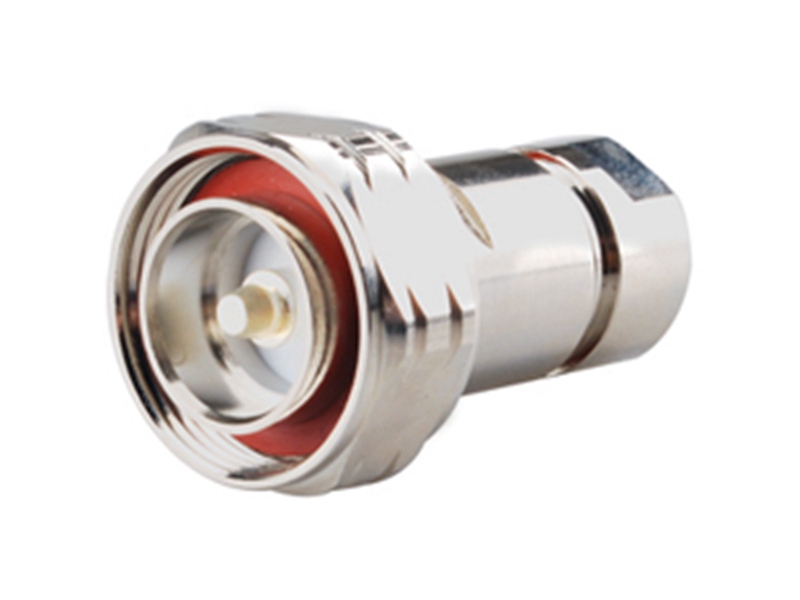

7/16 Connector for Corrugated copper 1/2” cable

  • Model: KLS1-L29007
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

1- Center Contact: Brass,Silver-plated
2- Body-diecast:   Brass,Nickel-plated
3- Insulation:     PTFE
4- Crimping suite: copper alloy, nicked or Gold-plated
5- Electrical
    Impedance: 50 Ω
    Frequency Range:6 GHz Max.
    Insertion loss:≤0.35dB,DC-6GHz
    Insulation resistance:≥1000mΩ
    Voltage Rating: 2700 volts
    Withstand Voltage:4000V
    V.S.W.R:<1.3
    Insulation resistance: 5000 MΩ Min.
    Contact resistance:
      Centre contact:0.4 mΩ
      Outer conductor:1.5 mΩ
6-Mechanical
   Mating: M29x1.5 threaded coupling
7-Durability(mating):  500 cycles  Max.
8-Temp.range   -40°C~85°C
Cable Type: Corrugated copper 1/2” cable
