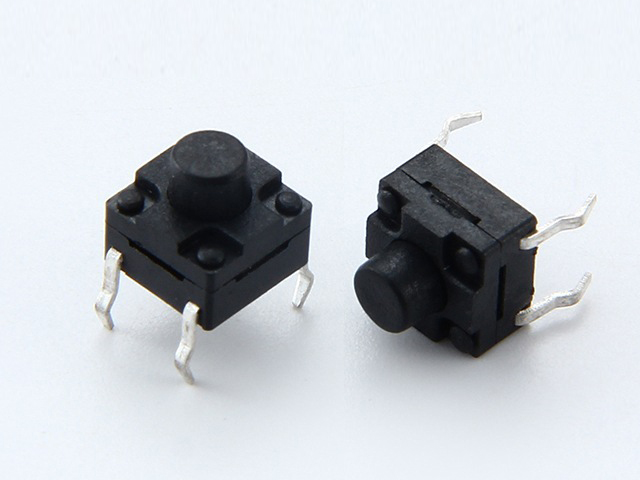

6.2×6.2mm IP67 Tact switch;DIP
- Product Details
|
ELECTRICAL
1-Rated load : DC 12V 50mA
2-Contact Resistance: ≤50mΩ
3-Insulation resistance: ≥100MΩ
4-Dielectric strength: AC250V(50Hz)/min
5-Action force: 180/250g±50g
6-Service life: 100000 cycles
7-Switch trip: 0.25±0.1mm
8-Working temperature: -25~+85°C
9-Hight: 4.3/5.0/6.5/7.0/7.5/8.0/8.5/9.0/9.5/10/10.5/11.0/11.5/12.0mm |
