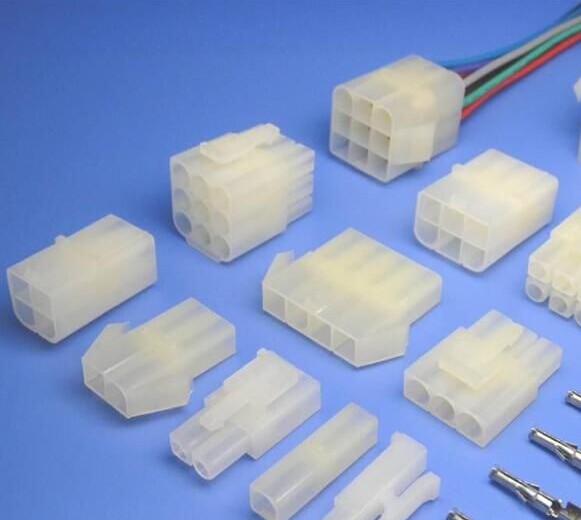

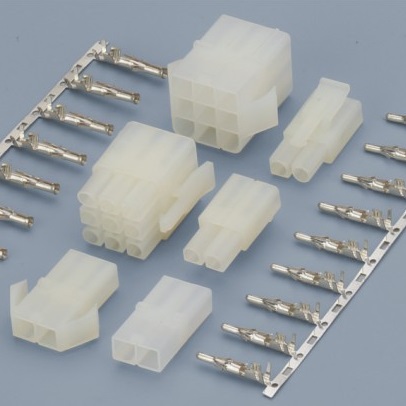

6.20mm Molex Wire To Wire Connector

Order information:
KLS1-XM1-6.20-2X02-FH
Pitch:6.20mm
Pins:1-Single layer 2-Double layer 3-Three layer
Pin numbur:1~15 pins
MH-Male Housing   FH-Female Housing   MT-Male Terminal   FT-Female Terminal

Specifications
◆Material: Nylon66 UL 94V-2
◆Terminal : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:10A AC,DC
◆Voltage rating:300V AC,DC
◆Temperature range:-45℃~+85℃
◆Insulationresistance:1000MΩ/Min.
◆Withstanding voltage:5000V AC/minute
◆Contact resistance:10mΩ/Max.

KLS1-XM1-6.20.pdf
