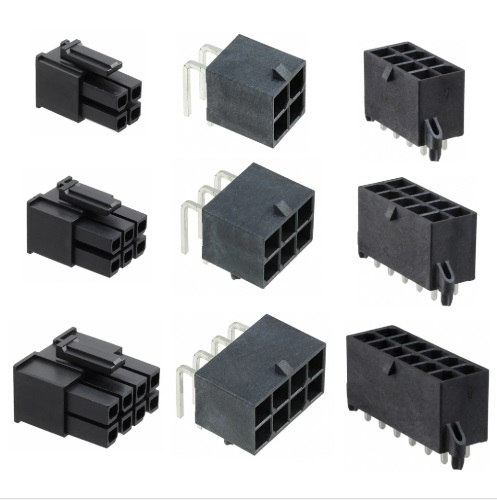

5.70mm Pitch Molex Mega-Fit Power 170001 76825 76829 172064 Wire To Board Connector

Order information:
KLS1-XM1-5.70-2×02-MH
Pitch:5.70mm
2-Double layer
02-No.of 02~12 pins
MH-Housing   FT-Terminal  S-Straight male pin   R-Right angle male pin
Specifications
◆Material: PA66/LCP,UL94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:23.0A AC,DC
◆Voltage rating:600V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulation resistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:30mΩ Max.
◆Wire range  : AWG#12~#16

KLS1-XM1-5.70.pdf
