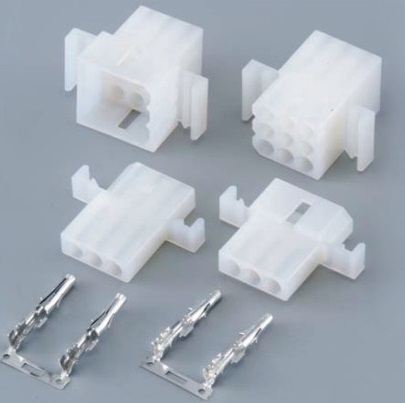

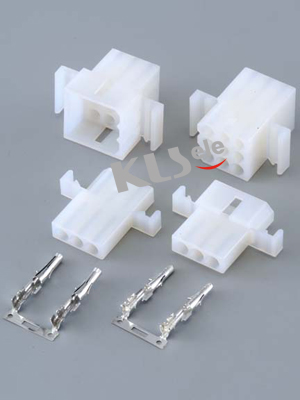

5.03mm Pitch Wire To Wire Connector
Order information:
KLS1-5.03-1×2-FH
Pitch:5.03mm
1-Single layer  2-Double layer   3-Three layer
2-No.of 2~15 pins
FH-Female Housing  MH-Male Housing  FT-Female Terminal   MT-Male Terminal

Specifications
◆Material: PA66 UL 94V-2
◆Finish : Plated Tin over Nickel
◆Current rating:12.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range  : AWG#14~#20

KLS1-5.03.pdf
