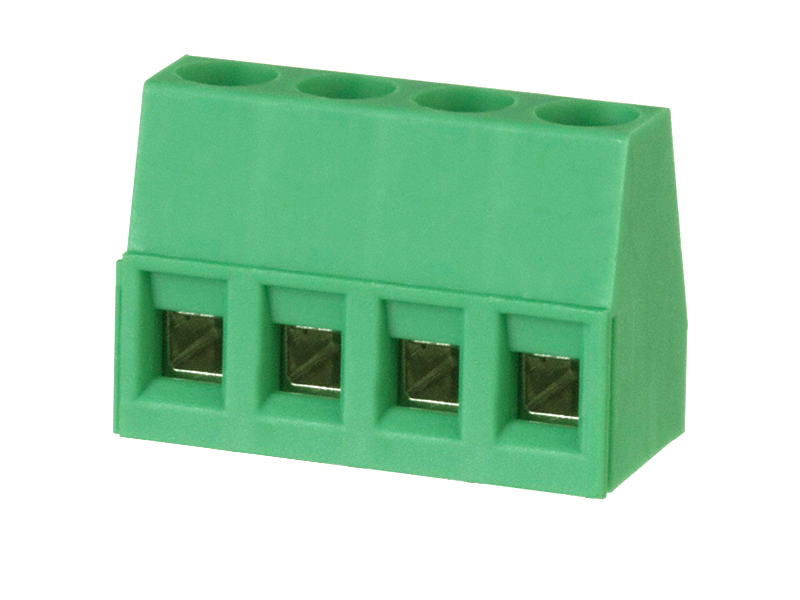

5.00mm Screw Terminal Block Rising clamp dip 90D
- Product Details
Electrical：
Rated voltage:300V
Rated current:15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range:28-14AWG1.5mm²
Material：
Screws: M2.5 steel Zinc plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical：
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.4Nm (10.6lb.in)
Strip length: 4.5~5mm
