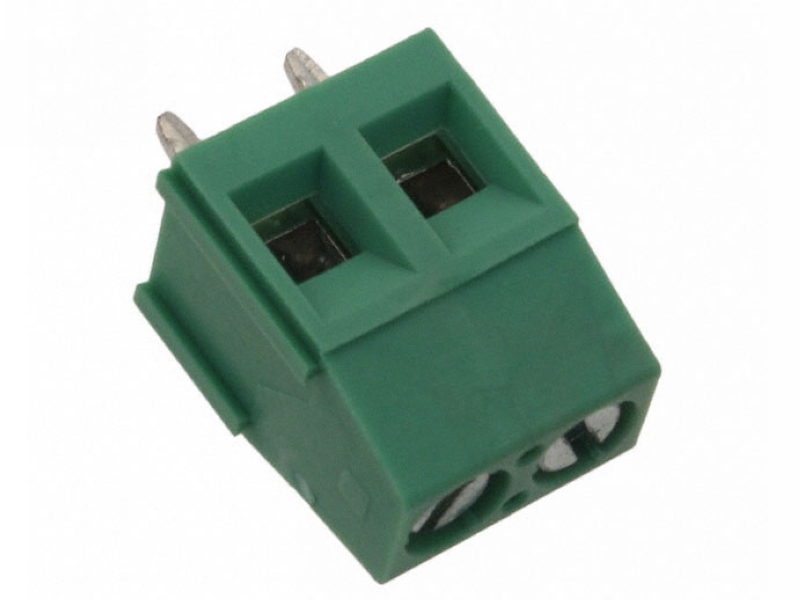

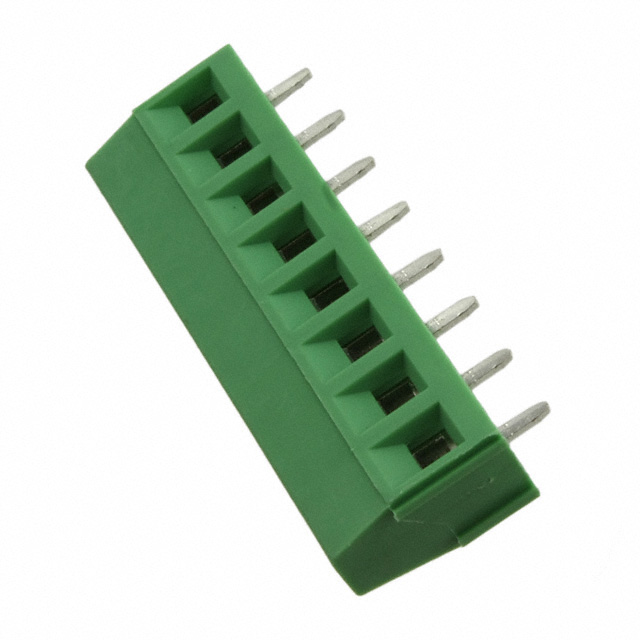

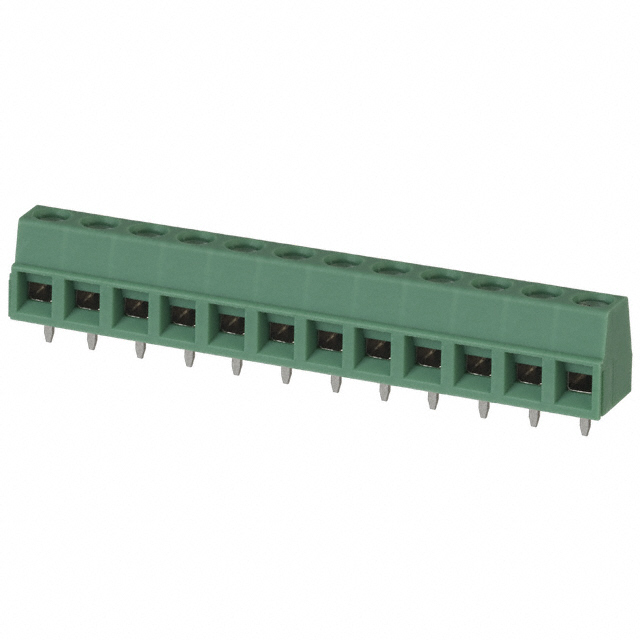

5.00mm & 5.08mm screw terminal block rising clamp

  • Model: KLS2-127-5.00&5.08
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical:
Rated voltage:300V
Rated current:15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range:28-14AWG1.5mm²

Material:
Screws: M2.5 steel Zinc plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0

Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.4Nm (10.6lb.in)
Strip length: 4.5~5mm
