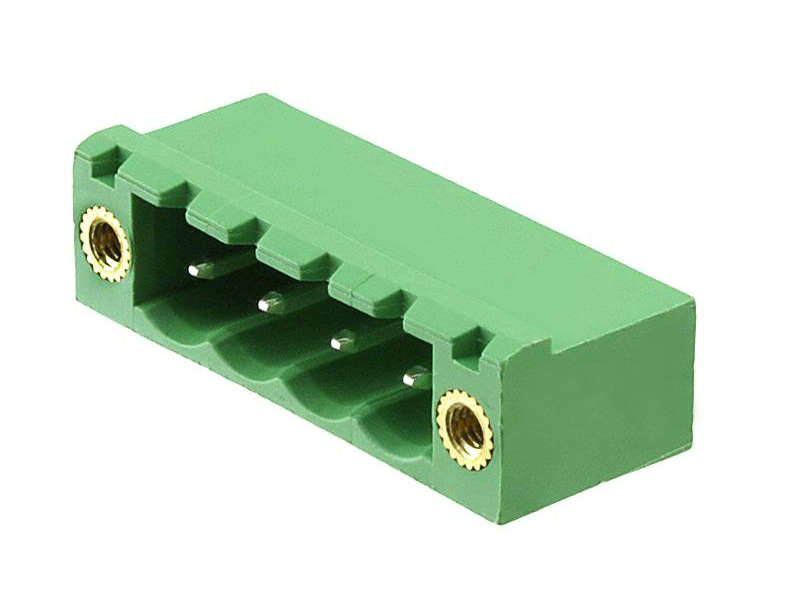

5.00mm & 5.08mm Female Pluggable terminal block Right Angle With Fixed hole
- Product Details
Electrical:
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Material:
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Housing: PA66, UL94V-0
Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
MAX Soldering: +250ºC for 5 Sec.
