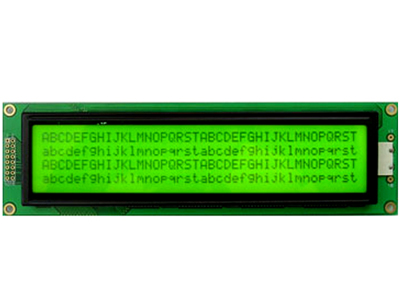

Display: 40×4 Character Type
OUTLINE:190.0×54.0x13.5
V.A.: 149.0×30.0
Character Size: 2.78×4.89
Dot: 0.5×0.55
View angle:6  O’clock
LCD type: STN/TRANSFLECTIVE/POSITIVE/Yellow-Green
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: Yellow-Green Bottom-Backlight LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-10ºC～+60ºC

KLS9-4004A.pdf
