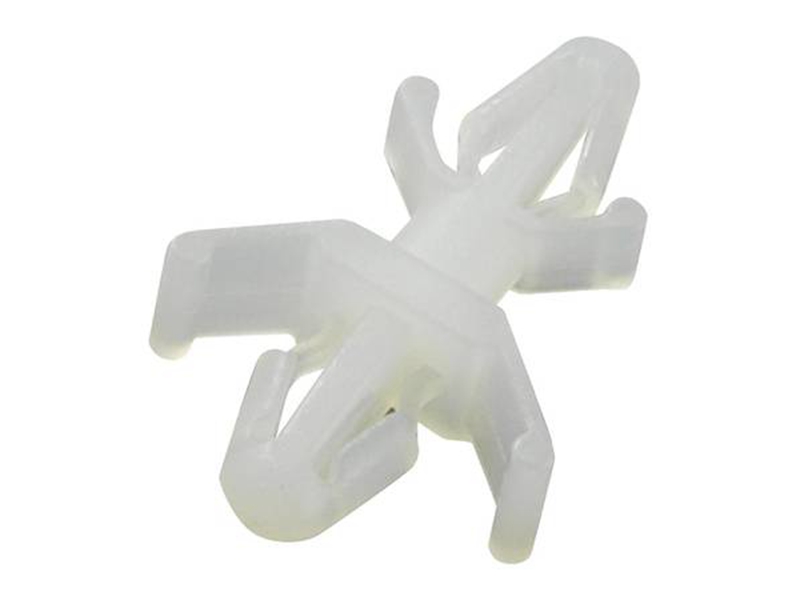

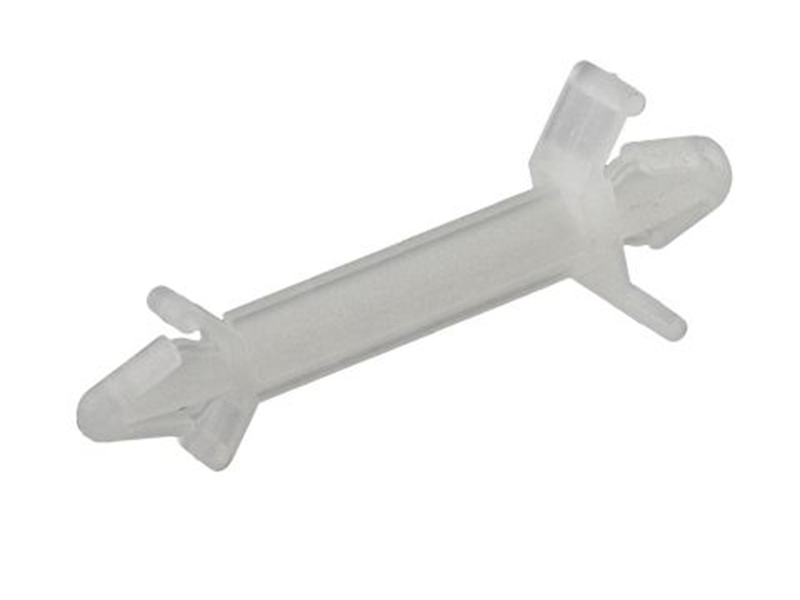

4.0/4.8mm Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

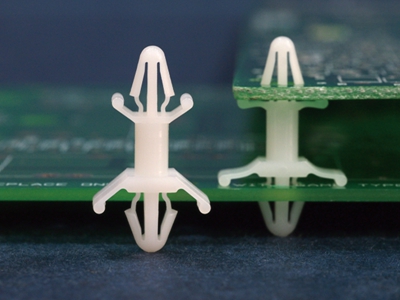

Application: the fixed PC board on the boards, free tools
| P/N | A(mm) | UPPER | CHASSIS | Color | Packing | ||
| PCB Hole | PCB THICKNESS | PCB Hole | PCB THICKNESS | ||||
| L-KLS8-0201-CS-0305 | 4.8 | 4.0mm | 2.5mm | 4.8mm | 2.5mm | Natural | 1000pcs |
| L-KLS8-0201-CS-0406 | 6.4 | 4.0mm | 2.5mm | 4.8mm | 2.5mm | Natural | 1000pcs |
| L-KLS8-0201-CS-0610 | 9.6 | 4.0mm | 2.5mm | 4.8mm | 2.5mm | Natural | 1000pcs |
| L-KLS8-0201-CS-0813 | 12.7 | 4.0mm | 2.5mm | 4.8mm | 2.5mm | Natural | 1000pcs |
| L-KLS8-0201-CS-1016 | 15.9 | 4.0mm | 2.5mm | 4.8mm | 2.5mm | Natural | 1000pcs |
| L-KLS8-0201-CS-1219 | 19.1 | 4.0mm | 2.5mm | 4.8mm | 2.5mm | Natural | 1000pcs |
| L-KLS8-0201-CS-1422 | 22.2 | 4.0mm | 2.5mm | 4.8mm | 2.5mm | Natural | 1000pcs |
| L-KLS8-0201-CS-1625 | 25.4 | 4.0mm | 2.5mm | 4.8mm | 2.5mm | Natural | 1000pcs |
| L-KLS8-0201-CS-1828 | 28.5 | 4.0mm | 2.5mm | 4.8mm | 2.5mm | Natural | 1000pcs |
| L-KLS8-0201-CS-2236 | 35.0 | 4.0mm | 2.5mm | 4.8mm | 2.5mm | Natural | 1000pcs |
