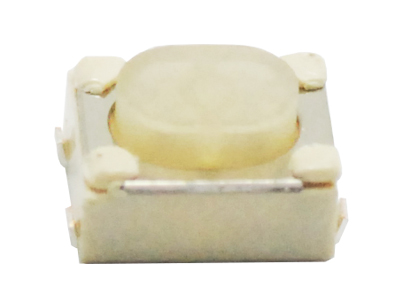

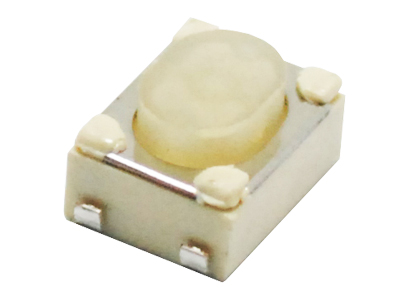

3x4mm Tact Switch (U Type)

  • Model: KLS7-TS3402
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical:
1.Rating:50mA 12V DC
2.Contact Resistance:100mΩ Max.
3.Insulation Resistance:100MΩ Min,100V DC
4.Dielectric voltage proof:250V AC for 1min
5.Electrically Life:100000 cycles Min.
6.Operating Force:250±50gf
7.Environment temperature:-30ºC~+80ºC

Materials:
A.Cards: Phosphor 0.12,Plated nickel silver
B.Pedestal:LCP,White
C.Shrapnel:Stainless steel
D.Push button:PA46,White
E.Cover:Stainless steel 0.2
