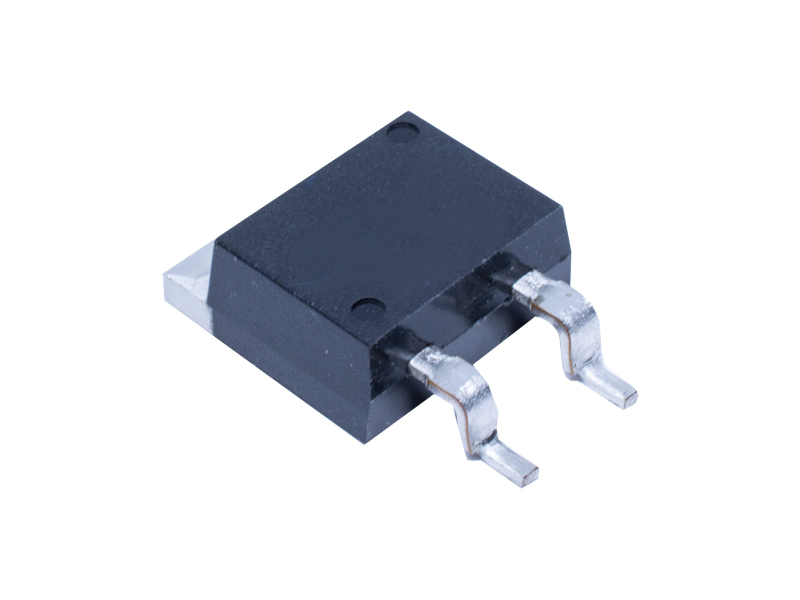

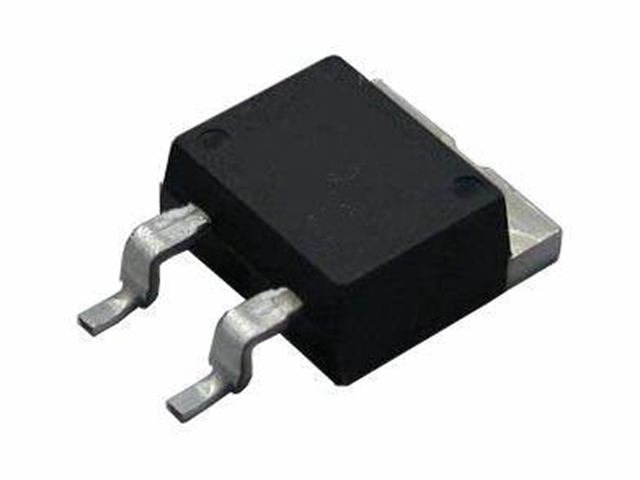

35W TO-263 Thick Film Power Resistors
- Product Details
Order Information:
|
L- |
KLS6- | RTD | 35- | 10R | -J | 3 | D | G | |||||
|
RoHS |
SMD Thick | Power (W) | Resistance (Ω) | Tolerance (%) | Case | Package |
TCR (PPM/℃) |
||||||
|
|
Film | 35W | 0R20 | 0.2Ω | F | ±1% | 3 | TO-263 | D | Tube | 0 | No Specified | |
| Power | 1R00 | 1Ω | J | ±5% | R | REEL | E |
±100 |
|||||
|
|
Resistors | 10R0 | 10Ω | K | ±10% | F |
±200 |
||||||
|
|
100R | 100Ω | G |
±300 |
|||||||||
| 1KR0 | 1000Ω |
|
|||||||||||
SMD High power resistor, thick film with packaged TO 263. applicaions are for switching power supply and Snubberscircuit, automated machine controller, RF power amplifier, low energy pulse loading , UPS, voltage regulation ,bleeder resistor.
Features :
n35 watts at 25°C case temperature heat sink mounted.
nTO-263 style power package.
nMolded case for protection and easy to mount.
nResistor is electrically isolated from metal tab.
nProducts with Pb-free Terminations and RoHS compliant.
Applications :Construction:
nSwitching Power Supplies
nSnubbers Circuits
nAutomated Machine Controller
nRF Power Amplifiers
nLow Energy Pulse Loading
nUPS
nVoltage Regulation
nBleeder Resistors
Electrical Characteristics SpecificationsDerating Curve:
nResistance Range: 0.2Ω – 130KΩ
nOperating Voltage: 350V Max.
nDielectric Strength: 1800VAC
nInsulation Resistance: 10GΩ min.
nOperating Temperature: -55°C to +125°C
