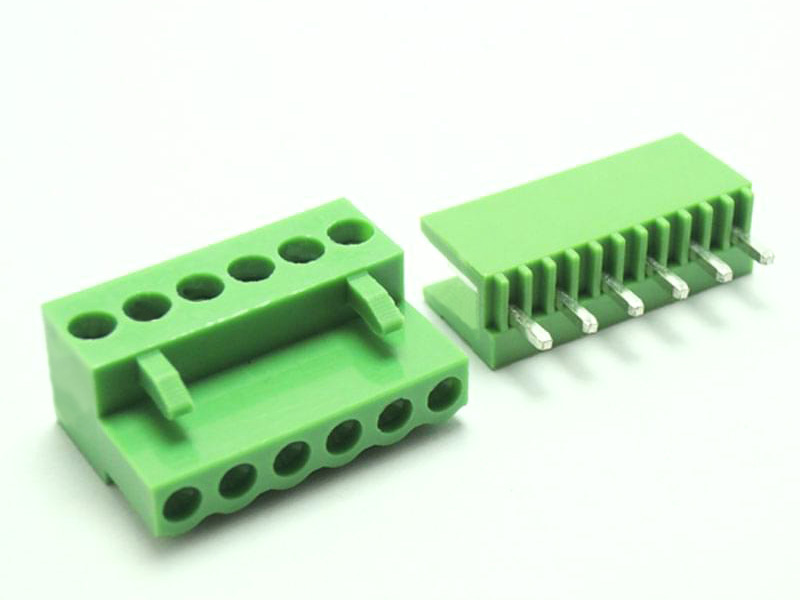

3.96mm Female Pluggable PCB terminal block Straight Pin

  • Model: KLS2-EDV-3.96
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical:
Rated voltage: 300V
Rated current: 18A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range:28-14AWG 2.5mm²

Material:
Screws: M3 steel Zinc plated
Contact: Brass,Ni Plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0

Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.5Nm (3.54lb.in)
Strip length: 7-8mm
