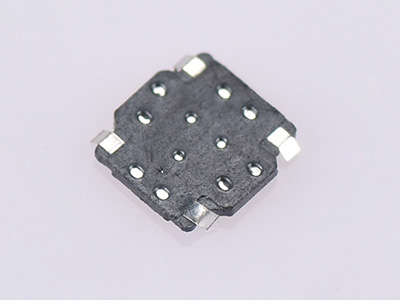

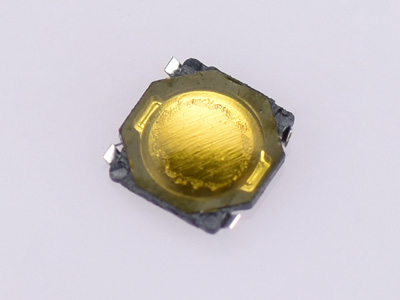

3.7×3.7mm Tact Switch (U Type)
- Product Details
Electrical:
1.Rating:50mA 12V DC
2.Contact Resistance:100mΩ Max.
3.Insulation Resistance:100MΩ Min,100V DC
4.Dielectric voltage proof:250V AC for 1min
5.Electrically Life:100000 cycles Min.
6.Operating Force:160±50gf
7.Environment temperature:-30ºC~+80ºC
Materials:
A.Cards: Phosphor 0.05
B.Pedestal:LCP,Black
C.Shrapnel:Stainless steel
D:Dust Film:0.05
