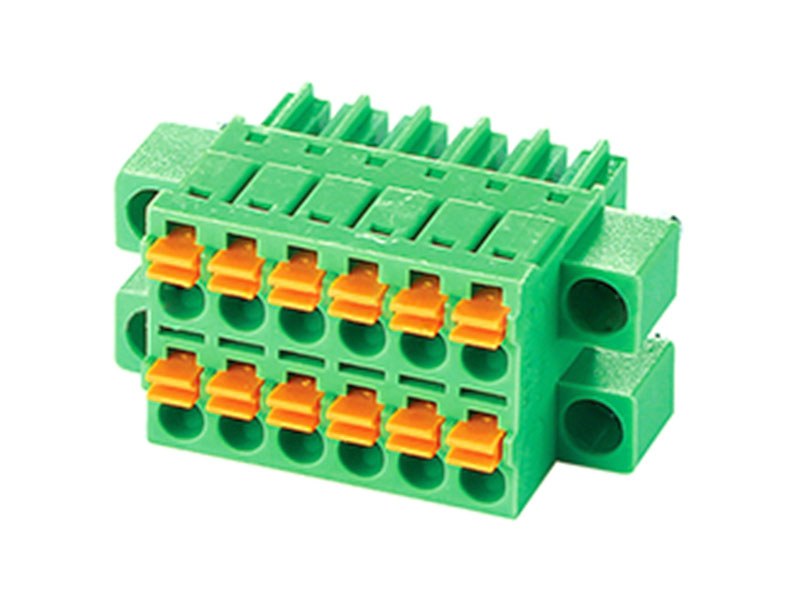

3.50mm Male Pluggable terminal block double With Fixed hole

  • Model: KLS2-FMDD-3.50
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF
Electrial:
Rated voltage: 300VRated current: 8A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range: 24-16AWG 1.5mm²
Material:
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical:
Temp. Range: -40ºC~+105ºC
Strip length:9-10mm
