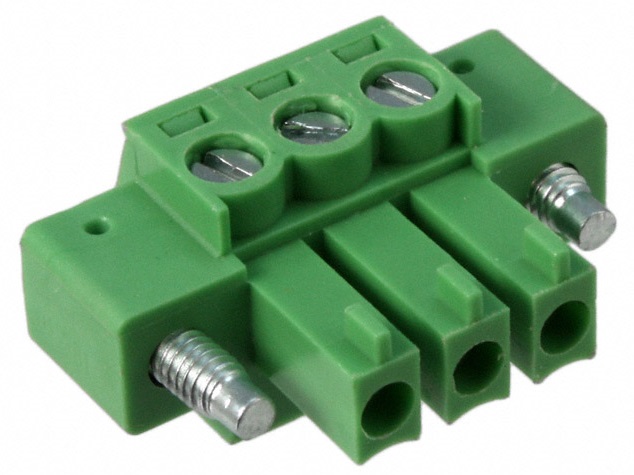

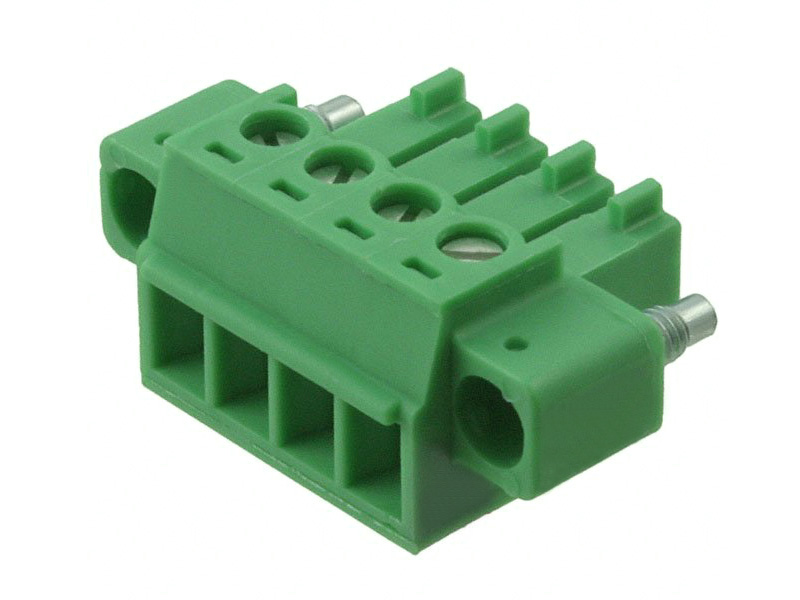

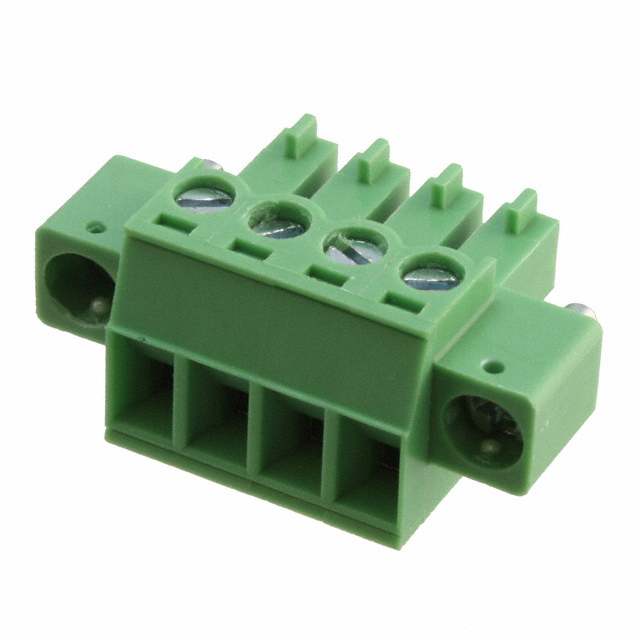

3.50mm & 3.81mm Male Pluggable terminal block With Fixed hole
- Product Details
3.5mm Pitch Pluggable Terminal Block / 3.81mm Pitch Pluggable Terminal Block
Electrical:
Rated voltage: 300V
Rated current: 8A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC2000V/1Min
Wire range: 28-16AWG 1.5mm²
Material:
Contact: Phosphor broze
Screws: M2,steel,Zinc plated
Housing: PA66, UL94V-0
Mechanical:
Temp. Range: -40ºC~+105ºC
Torque: 0.2Nm(1.7Lb.in)
Strip length: 6-7mm
