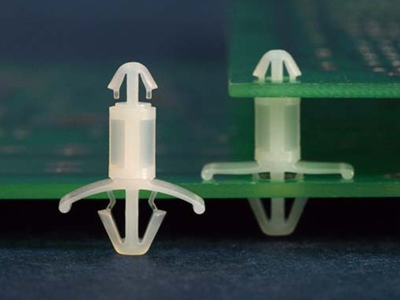

3.5/4.8mm Spacer Support

  • Model: KLS8-0227F
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-0227F-03 3.2 3.5 1.2~1.7 4.8 0.8~2.2 Natural 1000
L-KLS8-0227F-05 4.8 3.5 1.2~1.7 4.8 0.8~2.2 Natural 1000
L-KLS8-0227F-06 6.3 3.5 1.2~1.7 4.8 0.8~2.2 Natural 1000
L-KLS8-0227F-08 8.0 3.5 1.2~1.7 4.8 0.8~2.2 Natural 1000
L-KLS8-0227F-10 10.0 3.5 1.2~1.7 4.8 0.8~2.2 Natural 1000
L-KLS8-0227F-12 12.0 3.5 1.2~1.7 4.8 0.8~2.2 Natural 1000
L-KLS8-0227F-14 14.0 3.5 1.2~1.7 4.8 0.8~2.2 Natural 1000
L-KLS8-0227F-16 16.0 3.5 1.2~1.7 4.8 0.8~2.2 Natural 1000
L-KLS8-0227F-18 18.0 3.5 1.2~1.7 4.8 0.8~2.2 Natural 1000
L-KLS8-0227F-25 25.0 3.5 1.2~1.7 4.8 0.8~2.2 Natural 1000
