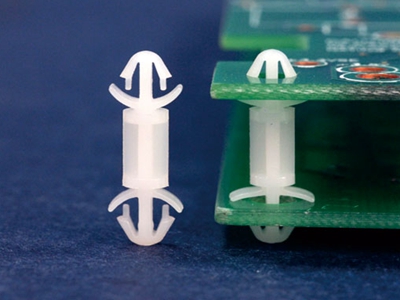

3.0/3.5mm Spacer Support

  • Model: KLS8-0234A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

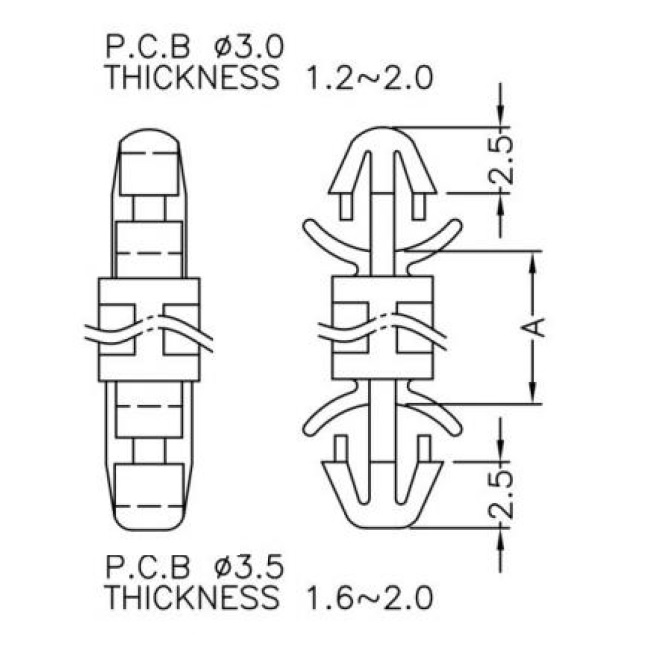

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-0234A-BH-03 3.0 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-3.5 3.5 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-04 4.0 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-05 4.8 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-06 6.0 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-6.4 6.4 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-07 7.0 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-08 8.0 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-09 9.0 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-10 10.0 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-11 11.5 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-13 12.7 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-14 14.0 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
L-KLS8-0234A-BH-16 16.0 3.0 1.2~2.0 3.5 1.6~2.0 Natural 2000
