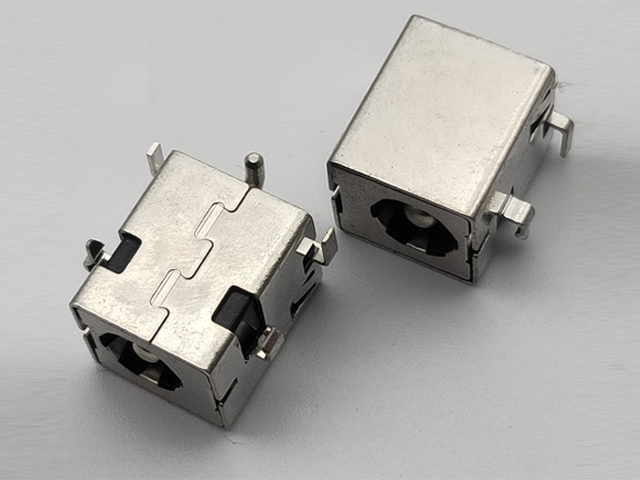

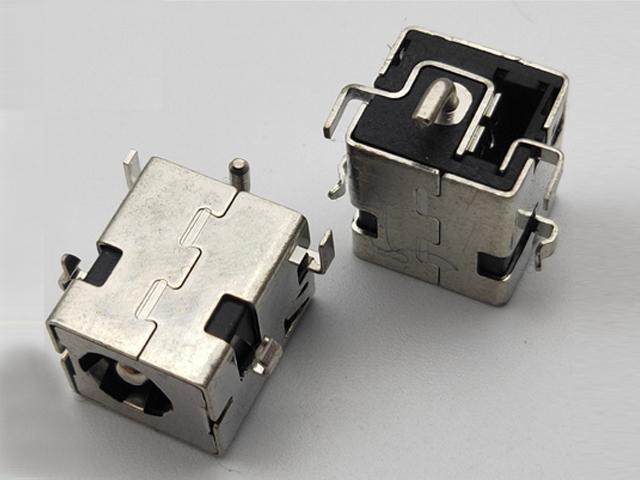

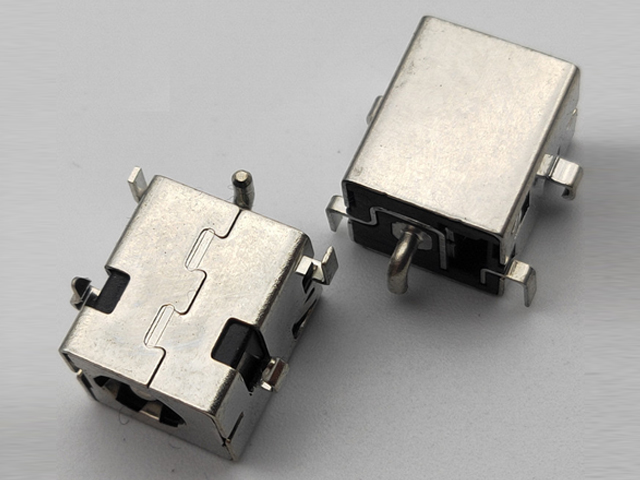

20V 5.5A DC Jack Mid Mount 3.65mm

  • Model: KLS1-MDC-040
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

SPECIFICATION
Rated Load: DC 20V 5.5A
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Withstand Voltage: AC500V
Actuating Force: 5~30N
Life: 5000 cycles
Operating Temperature: -30ºC ~ 70ºC
