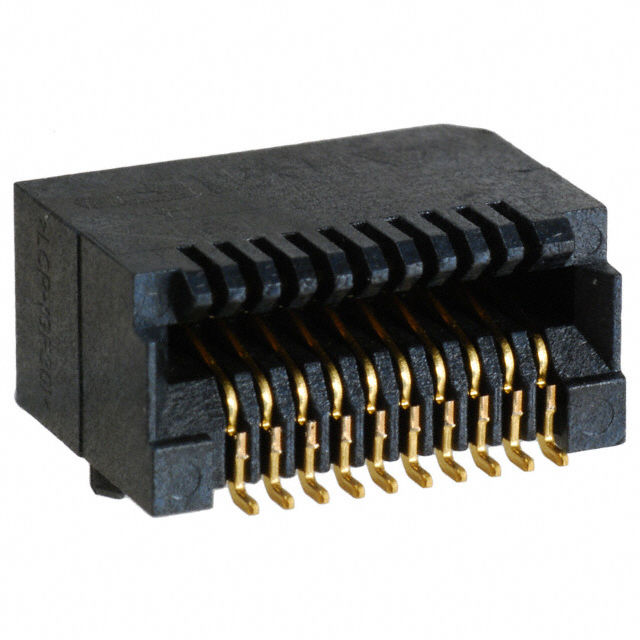

20Pin SMD SFP Connector 15U Gold
- Product Details
ELECTRICAL:
1. CONTACT RESISTANCE:30 MILLIOHMS MAX;
2. DIELECTRIC WITHSTANDING VOLTAGE: 300 VDC MIN;
3. INSULATION RESISTANCE: 1000 MEGAOHMS MIN AT 100 VDC FOR 1 MINUTE.
MATERIAL:
1. HOUSING: LCP UL94V-0 COLOR BLACK;
2. CONTACT: PHOSPHOR BRONZE T=0.20MM;
CONTACT PLATING: GOLD PLATING ON CONTACT AREA,15u”
OVER NICKEL UNDERPLATING OVERALL;
3. ROHS COMPLIANCE;
4. DURABILITY: 100 CYCLES MIN.
ENVIRONAMENTAL:
1. OPERATION TEMPERATURE RANGE: -40°C ~+85°C.
2. STORAGE TEMPERATURE RANGE: -40°C ~+85°C.
