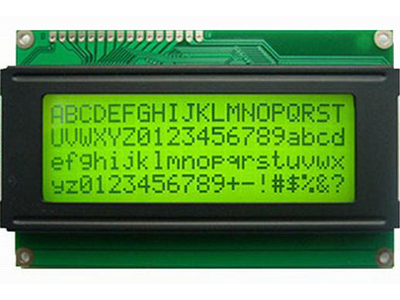

20*4 Character Type LCD Module

  • Model: KLS9-2004B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Display: 20×4 Character Type
OUTLINE:98.0×60.0x13.2
V.A.: 77.0×25.2
Character Size:2.96×4.76
Dot: 0.56×0.56
View angle:6  O’clock
LCD type: STN/TRANSFLECTIVE/POSITIVE/ Yellow-Green
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: White/ Side Backlight LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-10ºC~+60ºC
