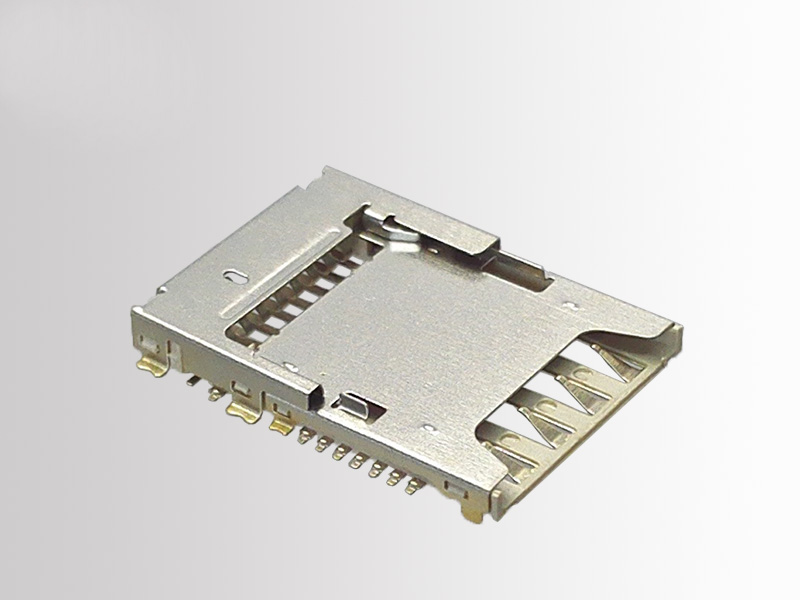

2 In 1 Micro SIM & SD Card Connector, 8P,H2.26mm

  • Model: KLS1-SIM-109
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2 In 1 Micro SIM & SD Card Connector, 8P,H2.26mm

Material:
Insulator:High Temp Thermoplastic,UL94V-0.Black.
Terminal:Copper Alloy,Gold plating in contact area 1u”,Soldering Area gilding 1u”
Upper Shell:Stainless Steel,Plate Nickel 50u”.
Down Shell:SUS304 R-1/2H T=0.10mm,Plate Nickel 50u”.

Electrical:
Insertion Force 1kgf Max.Withdrawal Force 0.1kgf Min.
Durability:SIM 5000 Cycles,
Contact Resistance:Before testing 80mΩ Max,After testing 120Ω Max.
Insulation Resistance:1000MΩ
Withstanding Voltage:500V AC For 1 minute.
Operating Temperature: -45ºC~+85ºC
