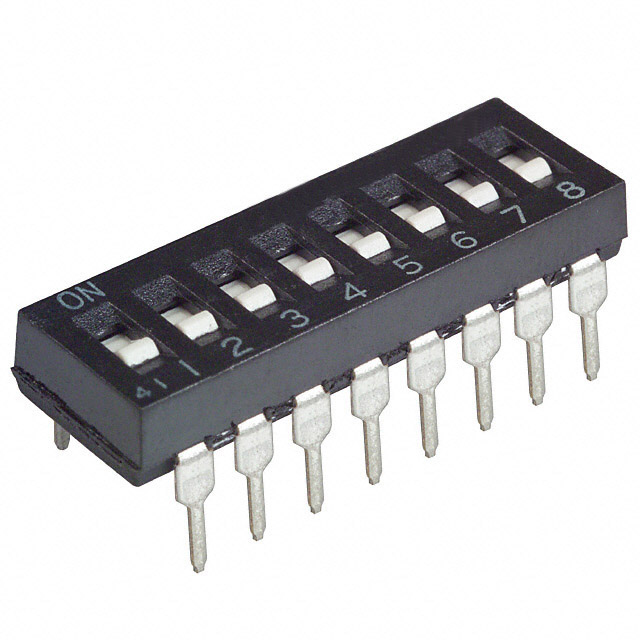

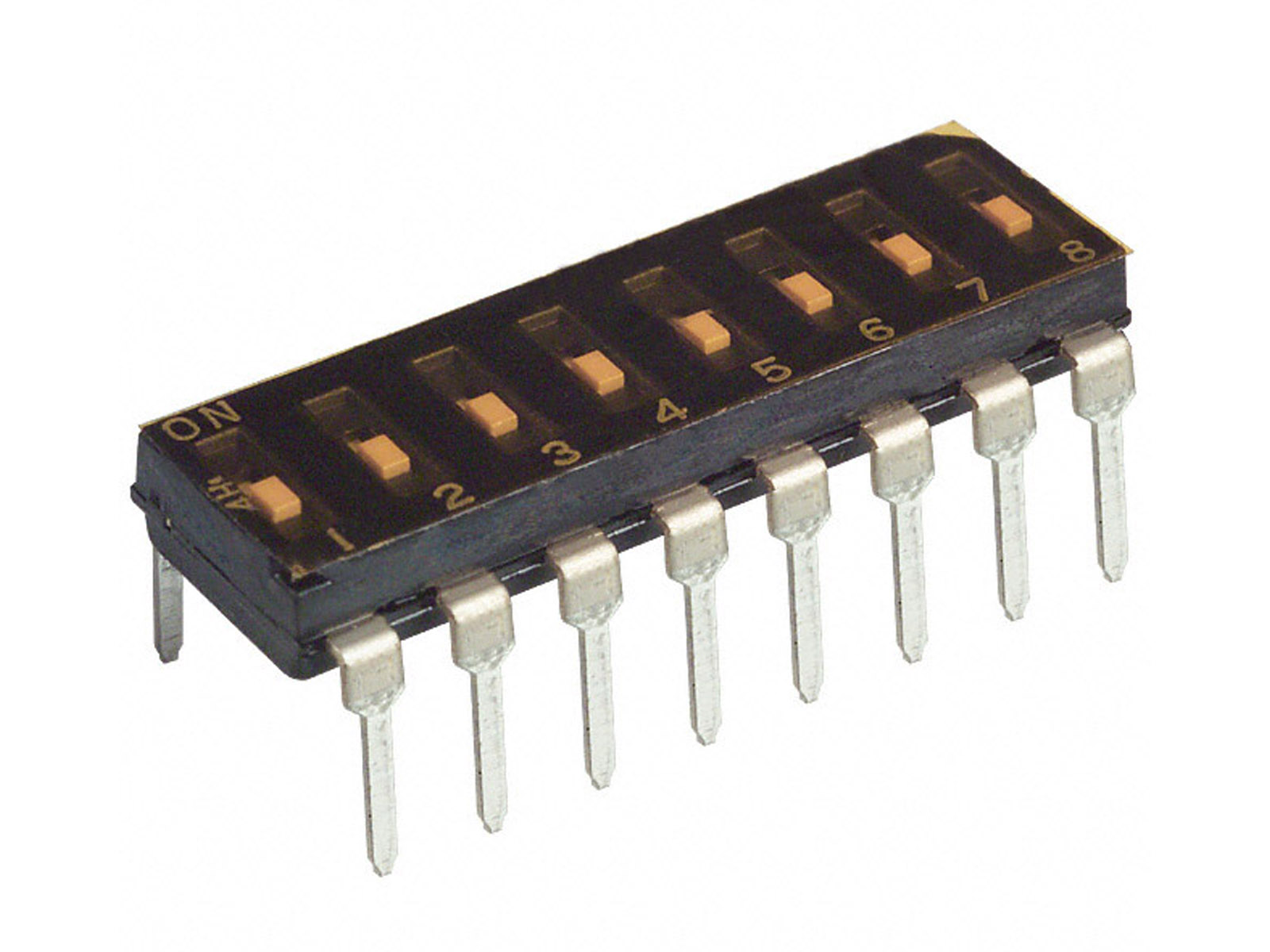

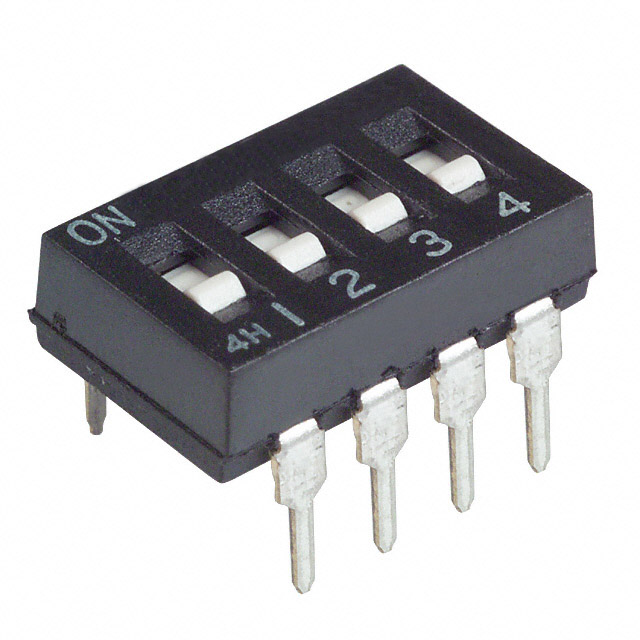

2.54mm End stackable through hole Recessed type

  • Model: KLS7-KMR
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order Information

KLS7-KMR-02-N-00

KL:      End-stackable Through Hole type Recessed DIP Switch Pitch 2.54mm
02:      Number of Pos.     1\2\3\4\5\6\7\8\9\10\12 Pos.
N:        Color Code:    N-Black
1:        1- With Sealed
0:        Packing Code      0- Tube Packing

Specifications
  Contact Rating:                25 mA at 24VDC(switching)
100 mA at 50VDC(steady state)
Life:                                    1,000 cycles
Contact Resistance:        100mΩ Max.
Insulation Resistance:     100MΩ at 100VDC Min
Dielectric Strength:          300VAC Min
Storage Tempeeature:     -40°C ~ 85°C
Operating Tempeeature:  -25°C ~ 70°C.
Operation Force  :              9.8N Max.

Materials
Base & Cover:   PPS (UL94V-0)
Actuator:            PA46 (UL94V-0).
Contacts:           Brass, Gold /Tin Plate
Terminals:          Brass, Gold /Tin Plate
